284932 Series

Catalog

CONN RCPT 3POS IDC 22-24AWG TIN

Part	Contact Finish	Connector Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Cable Termination	Color	Number of Positions

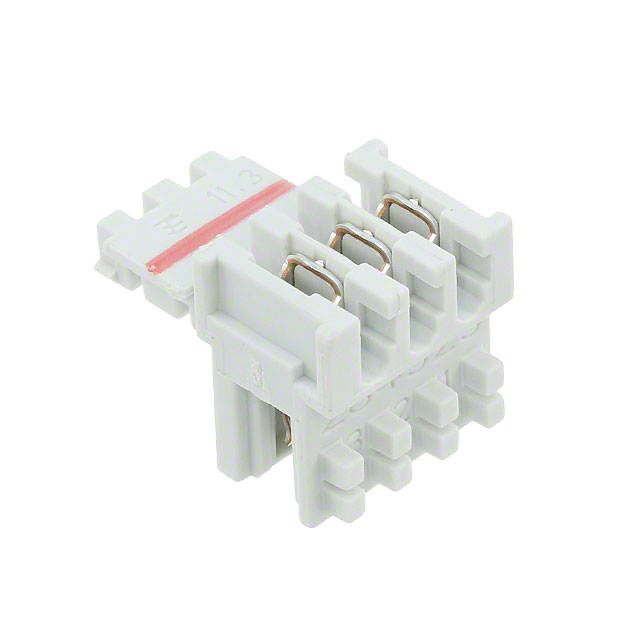

TE Connectivity Raychem Cable Protection 3-284932-3	Tin	Receptacle	Mates to PCB	24 AWG	22 AWG	Female Blade Socket	0.098 in	2.5 mm	1	Free Hanging (In-Line)	IDC
TE Connectivity Raychem Cable Protection 3-284932-5	Tin	Receptacle	Mates to PCB	24 AWG	22 AWG	Female Blade Socket	0.098 in	2.5 mm	1	Free Hanging (In-Line)	IDC	Red

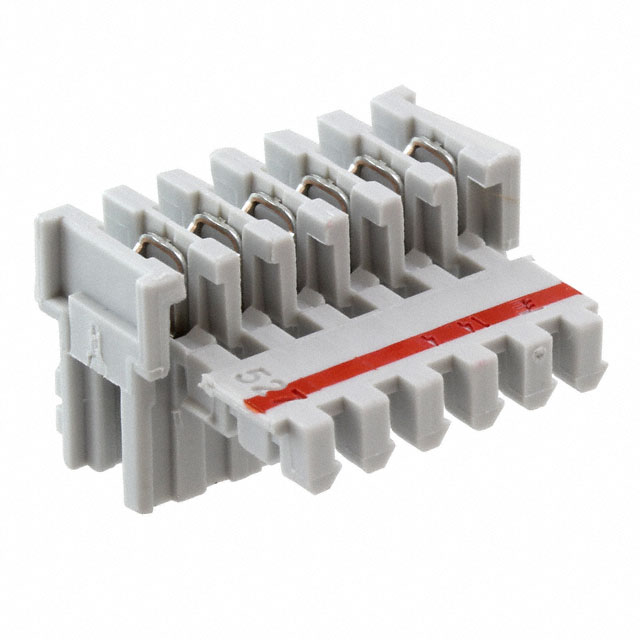

TE Connectivity Raychem Cable Protection 284932-6	Tin	Receptacle	Mates to PCB	24 AWG	22 AWG	Female Blade Socket	0.098 in	2.5 mm	1	Free Hanging (In-Line)	IDC		6

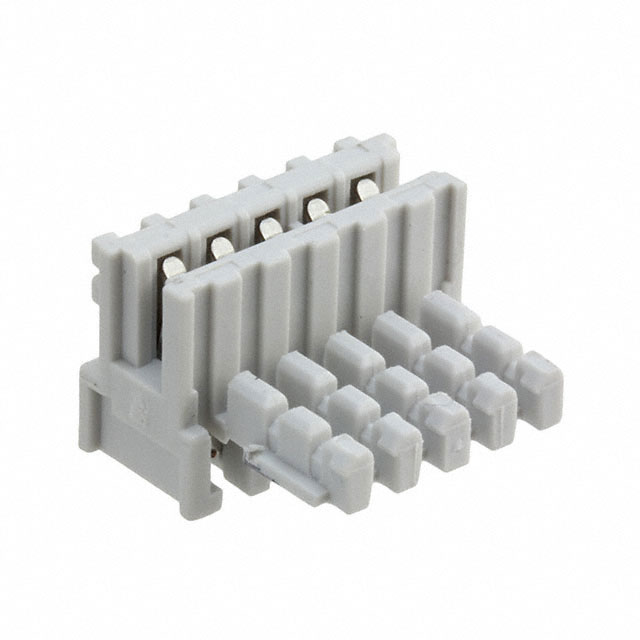

TE Connectivity Raychem Cable Protection 284932-5	Tin	Receptacle	Mates to PCB	24 AWG	22 AWG	Female Blade Socket	0.098 in	2.5 mm	1	Free Hanging (In-Line)	IDC

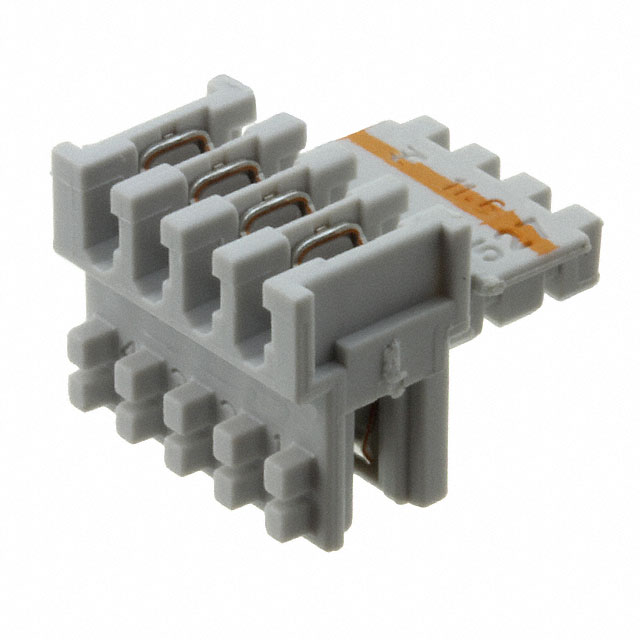

TE Connectivity Raychem Cable Protection 284932-4	Tin	Receptacle	Mates to PCB	24 AWG	22 AWG	Female Blade Socket	0.098 in	2.5 mm	1	Free Hanging (In-Line)	IDC		4
