395-130 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 130POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Number of Rows [custom] | Contact Finish | Color | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Material | Pitch | Pitch | Mounting Type | Number of Positions/Bay/Row | Gender | Contact Type | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

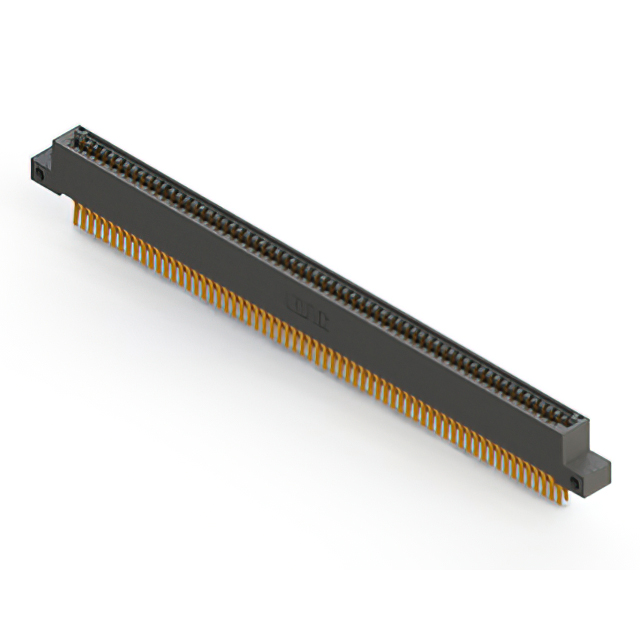

 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Right Angle Through Hole | 65 | Female | Cantilever | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Board Edge Straddle Mount | 65 | Female | Cantilever | Solder Eyelet(s) | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Board Edge Straddle Mount | 65 | Female | Cantilever | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | -40 C | 105 ░C | 130 | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 65 | Female | Cantilever | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
