SFW30R Series

Catalog

CONN FFC FPC TOP 30POS 1MM R/A

Part	Housing Color	Actuator Color	Mating Cycles	Voltage Rating	Housing Material	Flat Flex Type	FFC, FCB Thickness	Pitch	Pitch	Connector/Contact Type	Mounting Type	Cable End Type	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Number of Positions	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Actuator Material	Contact Finish	Termination	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features

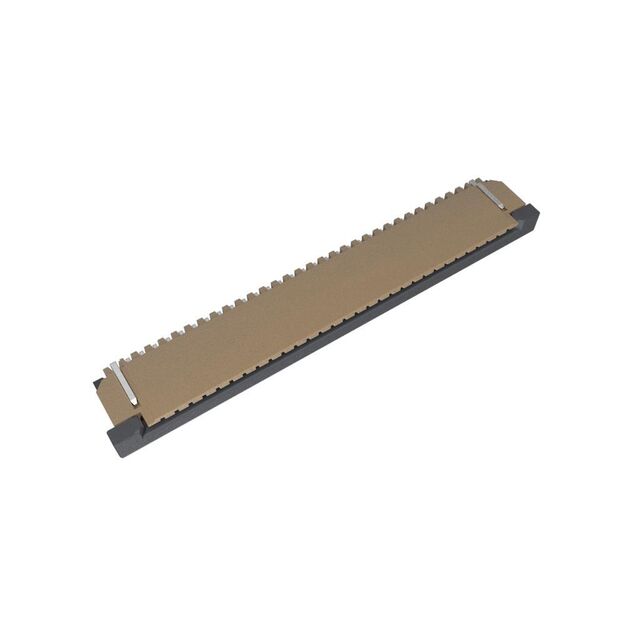

Amphenol ICC (FCI) SFW30R-2STE1LF	Brown	Black	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	0.3 mm	1 mm	0.039 in	Contacts Top	Right Angle Surface Mount	Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder
Amphenol ICC (FCI) SFW30R-1STAE1LF	Brown	Brown	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FPC	0.33 mm	1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Notched	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Solder
Amphenol ICC (FCI) SFW30R-1STE1LF	Brown		20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	0.3 mm	1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Straight or Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Kinked Pin
Amphenol ICC (FCI) SFW30R-1STGE1LF	Brown	Black	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FPC	0.33 mm	1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Solder
Amphenol ICC (FCI) SFW30R-3STE1LF	Black		20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	0.3 mm	1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Straight or Tapered	UL94 V-0	0.106 in	2.7 mm	30		-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Kinked Pin
Amphenol ICC (FCI) SFW30R-2STE9LF	Brown	Black	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC		1 mm	0.039 in	Contacts Top	Right Angle Surface Mount	Straight Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW30R-1STE1HLF	Black	Black	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FFC FPC		1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Straight Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin	Solder	0.3 mm	0.33 mm

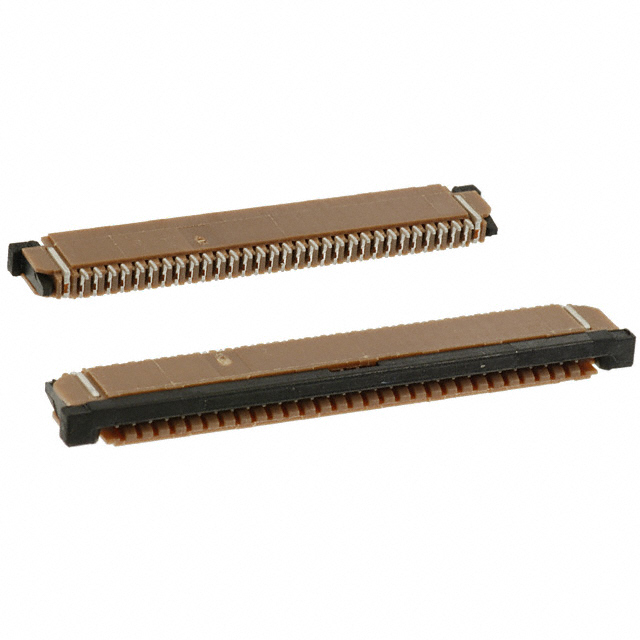

Amphenol ICC (FCI) SFW30R-1STE1	Brown	Black			Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC		1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Straight Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock			Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	Solder	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW30R-5STZE1LF	Brown	Black	10	100 V	Polyphenylene Sulfide (PPS) Glass Filled	CIC		1 mm	0.039 in	Contacts Bottom	Right Angle Surface Mount	Straight Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)

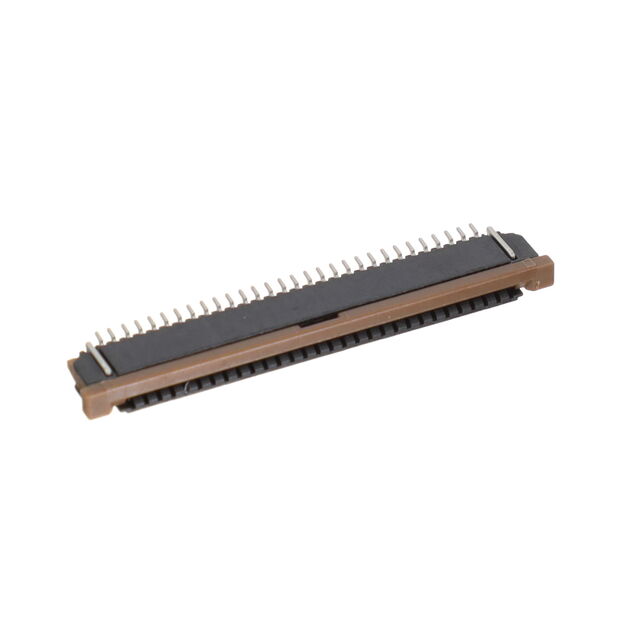

Amphenol ICC (FCI) SFW30R-4STE1LF	Black	Brown	20	100 V	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC		1 mm	0.039 in	Contacts Top	Right Angle Surface Mount	Notched Tapered	UL94 V-0	0.106 in	2.7 mm	30	Slide Lock	-55 C	105 ░C	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
