M4730 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

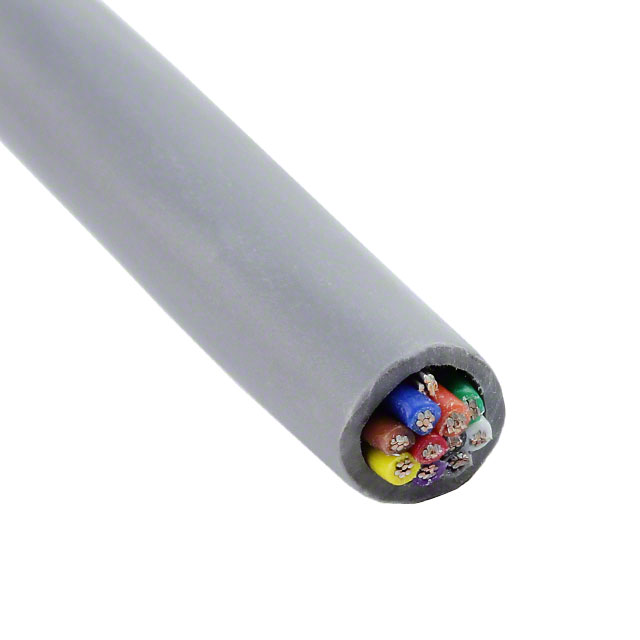

CABLE 10COND 16AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket Color | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Length | Length | Shield Type | Conductor Material | Number of Conductors [custom] | Conductor Insulation | Features | Voltage | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 0.435 in | 11.05 mm | UL Style 2464 | Slate | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 152.4 m | 500 ft | Foil | Copper Tinned | 10 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 300 VDC | 16 AWG | ||
ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 0.435 in | 11.05 mm | UL Style 2464 | Slate | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Foil | Copper Tinned | 10 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 300 VDC | 16 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 0.435 in | 11.05 mm | UL Style 2464 | Slate | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 304.8 m | 1000 ft | Foil | Copper Tinned | 10 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 300 VDC | 16 AWG |
