BSA86 Series
Manufacturer: TE Intercontec
Beta
⌘K

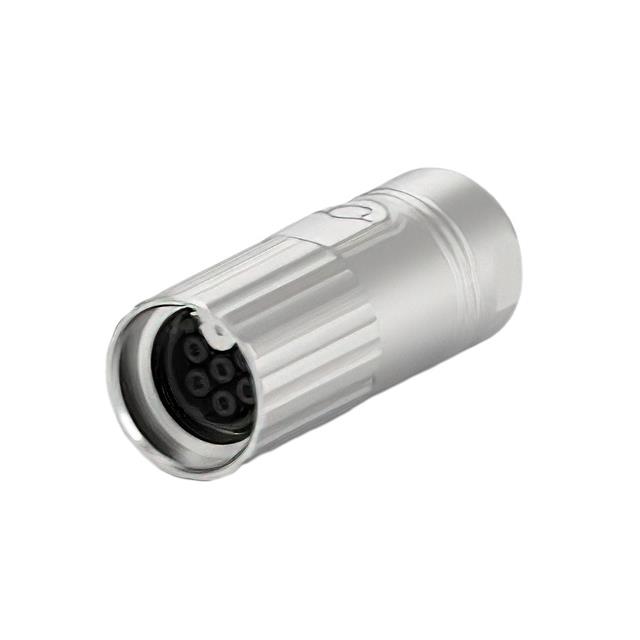

CONN PLG HSG FMALE 7POS INLINE
| Part | Shell Finish | Ingress Protection | Type | Note | Number of Positions | Shell Material | Connector Type | Mounting Type | Material Flammability Rating | Includes | Housing Color | Contact Shape | Features | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Shielding | Insert Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Nickel | IP66 IP67 | For Female Sockets | Contacts Not Included | 7 | Zinc Die Cast | Plug Housing | Free Hanging (In-Line) | UL94 V-0 | 1 Backshell 1 Cable Clamp 1 Connector | Silver | Circular | Backshell Cable Clamp Coupling Nut | -20 ░C | 130 °C | Push-Twist | Shielded | Polybutylene Terephthalate (PBT) | Keyed |
