SPMWHT32 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED LM302C COOL WHITE 5000K 3030

Part	Thermal Resistance of Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	CRI (Color Rendering Index)	Current - Max [Max]	Lumens/Watt @ Current - Test	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Package / Case	Package / Case	CCT (K)	Viewing Angle	CCT (K)
Samsung Semiconductor, Inc. SPMWHT32BMD5YBRKS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	177 lm/W	Surface Mount	3030	5.9 V	Cool White	0.033 in	0.85 mm	74 lm	62 lm	68 lm	3030 Metric	1212	5000 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD5YBQKS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	167 lm/W	Surface Mount	3030	5.9 V	Cool White	0.033 in	0.85 mm			64 lm	3030 Metric	1212	5700 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD3YBVSS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	70	150 mA	177 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm	74 lm	62 lm	68 lm	3030 Metric	1212	3000 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD3YBVKS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	70	150 mA	177 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm	74 lm	62 lm	68 lm	3030 Metric	1212	3000 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD5YBRSS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	177 lm/W	Surface Mount	3030	5.9 V	Cool White	0.033 in	0.85 mm	74 lm	62 lm	68 lm	3030 Metric	1212	5000 K	115 °

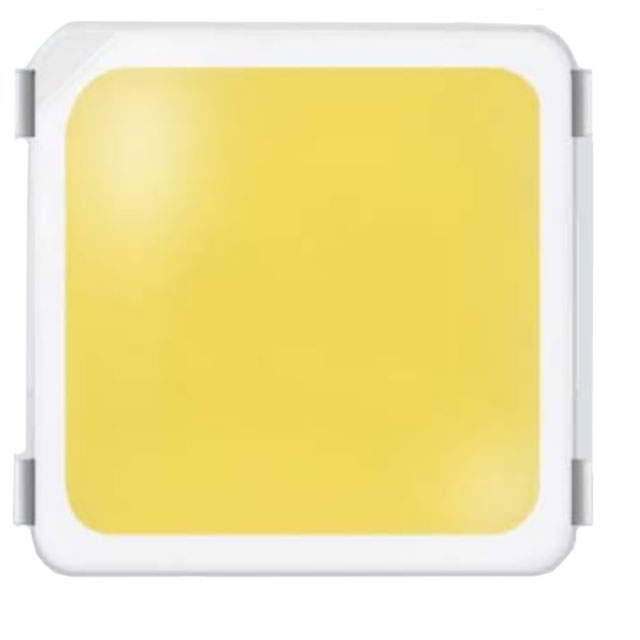

Samsung Semiconductor, Inc. SPMWHT32BMD7YBV0S0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	90	150 mA	136 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm	58 lm	46 lm	52 lm	3030 Metric	1212	3000 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD5YBWSS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	156 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm	66 lm	54 lm		3030 Metric	1212	2700 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD5YBWKS0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	156 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm	66 lm	54 lm		3030 Metric	1212	2700 K	115 °
Samsung Semiconductor, Inc. SPMWHT32BMD5YBT3S0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	167 lm/W	Surface Mount	3030	5.9 V	Neutral White	0.033 in	0.85 mm			64 lm	3030 Metric	1212	4000 K	115 °	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SPMWHT32BMD5YBU3S0	8 °C/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	80	150 mA	167 lm/W	Surface Mount	3030	5.9 V	Warm White	0.033 in	0.85 mm			64 lm	3030 Metric	1212	3500 K	115 °	3-Step MacAdam Ellipse
