UW-09 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Approval Agency	Driver Circuitry	Input Type	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Operating Mode	Termination	Termination	Termination	Port Location	Frequency	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply [Max]	Current - Supply [Min]	Sound Pressure Level (SPL)
Floyd Bell Inc UW-09-515-S(F)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Warble Fast	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB

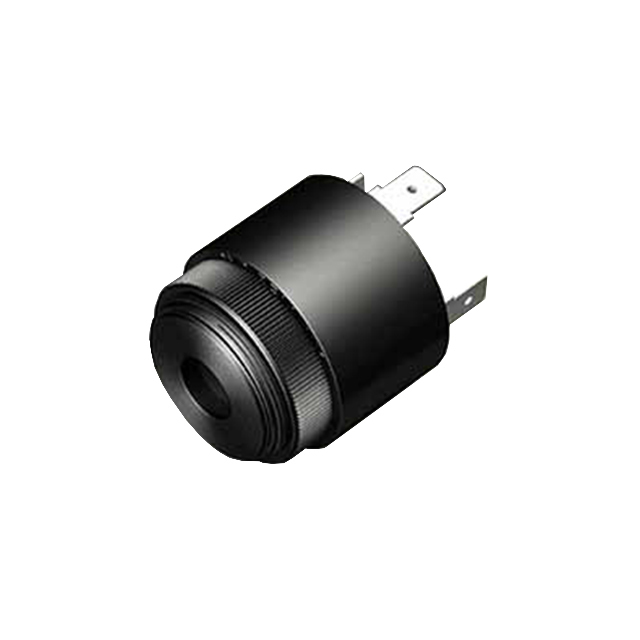

Floyd Bell Inc UW-09-515-Q(S)D	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Single Tone Slow Warble	0.25 "	Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
Floyd Bell Inc UW-09-515-Q(F)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Warble Fast	0.25 "	Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
Floyd Bell Inc UW-09-515-Q(S)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Slow Warble	0.25 "	Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
Floyd Bell Inc UW-09-628-Q(S)D	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	6 VDC	28 V	IP68 - Dust Tight Waterproof	Single Tone Slow Warble	0.25 "	Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	50 mA	20 mA	109 dB
Floyd Bell Inc UW-09-628-S(S)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	6 VDC	28 V	IP68 - Dust Tight Waterproof	Slow Warble	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	50 mA	20 mA	109 dB
Floyd Bell Inc UW-09-628-S(S)D	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	6 VDC	28 V	IP68 - Dust Tight Waterproof	Single Tone Slow Warble	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	50 mA	20 mA	109 dB
Floyd Bell Inc UW-09-515-Q(F)D	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Fast Single Tone Warble	0.25 "	Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
Floyd Bell Inc UW-09-515-S(S)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Slow Warble	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
Floyd Bell Inc UW-09-515-W(S)	UL UR	Indicator Internally Driven	DC	Panel Mount	1.38 in	35.05 mm	5 VDC	15 V	IP68 - Dust Tight Waterproof	Slow Warble		Wire Leads		Top	2.1 kHz	Piezo	1.41 in	35.81 mm	80 mA	35 mA	109 dB
