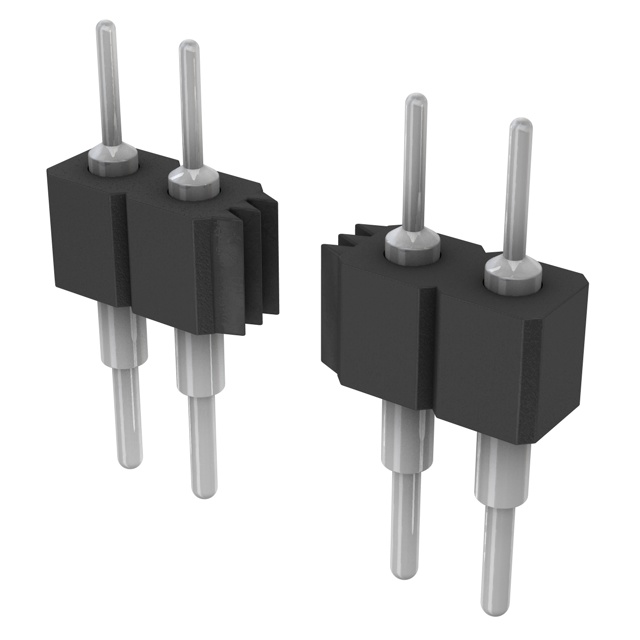

351-80 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN HEADER VERT 62POS 2.54MM
| Part | Fastening Type | Number of Positions Loaded | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Current Rating (Amps) | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Voltage Rating | Connector Type | Overall Contact Length | Overall Contact Length | Contact Material | Contact Shape | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Material Flammability Rating | Contact Type | Number of Rows | Shrouding | Pitch - Mating | Pitch - Mating | Number of Positions | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 12.4 mm | 0.488 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 62 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 12.4 mm | 0.488 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 19 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 48 | 14.6 mm | 0.575 in | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 27.4 mm | 1.079 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 53 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 21.5 mm | 0.846 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 50 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 21.5 mm | 0.846 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 13 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 12.4 mm | 0.488 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 63 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 21.5 mm | 0.846 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 40 | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 7 | 14.6 mm | 0.575 in | ||
Preci-Dip | Push-Pull | All | Tin | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Black | 0.116 " | 2.95 mm | 3 mm | 0.118 in | 150 VDC | Header | 12.4 mm | 0.488 in | Brass | Circular | Solder | 0.126 " | 3.2 mm | Through Hole | UL94 V-0 | Male Pin | 1 | Unshrouded | 0.1 " | 2.54 mm | 30 |
