FSD Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 16A 250VAC 5X20MM

Part	Melting I˛t	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Approval Agency	Fuse Type	Melting I²t	Response Time	Package / Case [x]	Package / Case [y]
OptiFuse FSD-16A	894.7	-55 C	125 °C	16 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	IEC 60127	Cartridge Glass	894.7 I²t	Fast Blow	5 mm	20 mm
OptiFuse FSD-500MA	0.205	-55 C	125 °C	0.5 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	0.205	Fast Blow	5 mm	20 mm
OptiFuse FSD-20A	1877	-55 C	125 °C	20 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V		IEC 60127	Cartridge Glass	1877	Fast Blow	5 mm	20 mm
OptiFuse FSD-2.5A	13.69	-55 C	125 °C	2.5 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	13.69	Fast Blow	5 mm	20 mm
OptiFuse FSD-160MA	0.0099	-55 C	125 °C	160 mA	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	0.0099	Fast Blow	5 mm	20 mm
OptiFuse FSD-315MA	0.082	-55 C	125 °C	0.315 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	0.082	Fast Blow	5 mm	20 mm
OptiFuse FSD-400MA	0.1224	-55 C	125 °C	400 mA	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	0.1224	Fast Blow	5 mm	20 mm

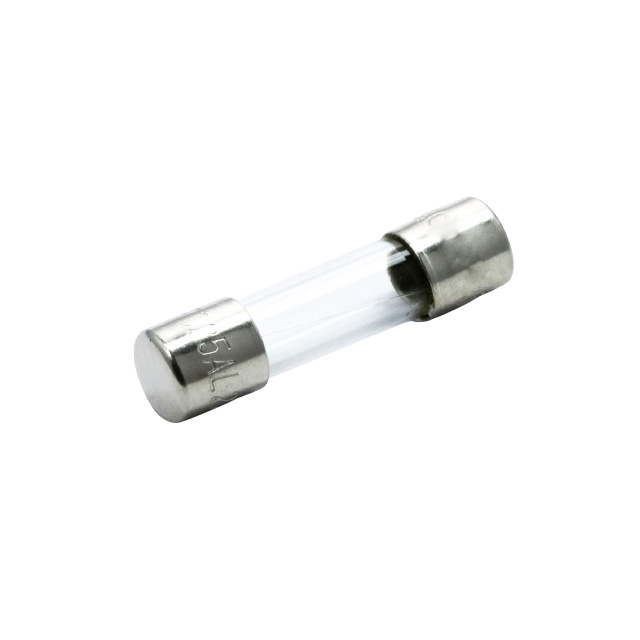

OptiFuse FSD-1.25A	1.81	-55 C	125 °C	1.25 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	1.81 I²t	Fast Blow	5 mm	20 mm
OptiFuse FSD-1A	1.24	-55 C	125 °C	1 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass		Fast Blow	5 mm	20 mm
OptiFuse FSD-5A	58.83	-55 C	125 °C	5 A	20 mm	0.205 in	0.787 "	5.2 mm	Requires Holder	250 V	35 A	cURus IEC 60127	Cartridge Glass	58.83 I²t	Fast Blow	5 mm	20 mm
