746-098 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 98POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Contact Type	Contact Material	Pitch	Pitch	Read Out	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Color	Number of Rows [custom]
EDAC Inc. 746-098-520-201	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-553-206	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-520-206	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-545-601	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-525-206	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-553-606	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-541-601	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-525-201	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2

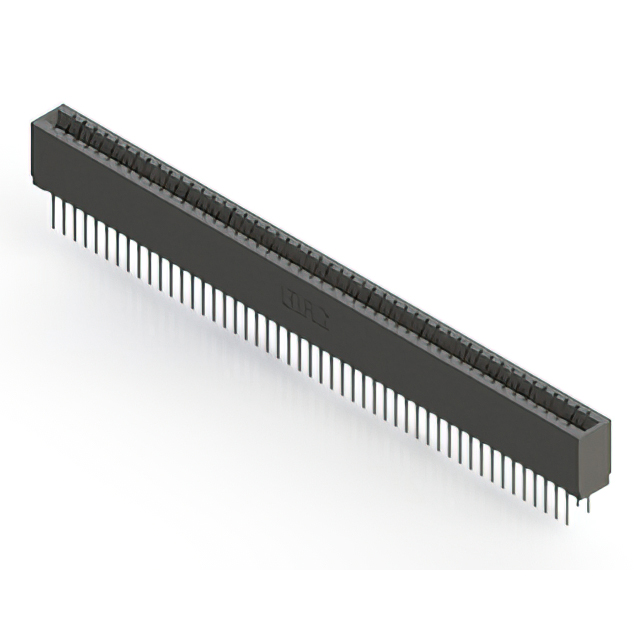

EDAC Inc. 746-098-527-201	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
EDAC Inc. 746-098-540-206	2	Polyester Thermoplastic	Through Hole	Gold	Female	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	98	Cantilever	Copper Alloy	3.18 mm	0.125 in	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Black	2
