NHD-0212 Series

Catalog

LCD MOD 24DIG 12X2 TRANSFLCT WHT

Part	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Character Size [y]	Character Size [z]	Text Color	Number of Characters	Character Format [x]	Character Format [y]	Operating Temperature [Min]	Operating Temperature [Max]	Dot Size [custom]	Dot Size [custom]	Viewing Area [y]	Viewing Area [x]	Interface	Display Type	Background Color	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Mode	Backlight	Display Format [y]	Display Format [x]	Controller Type
Newhaven Display Intl NHD-0212WH-ATGH-JT#	32 mm	14.5 mm	55.7 mm	2.65 mm	5.5 mm	Blue	24	5 Dots	8 Dots	-20 ░C	70 °C	0.45 mm	0.6 mm	14.5 mm	46 mm	Parallel	STN - Super-Twisted Nematic	White	5.5 V	4.5 V	Transflective	LED - White	2	12	ST7066

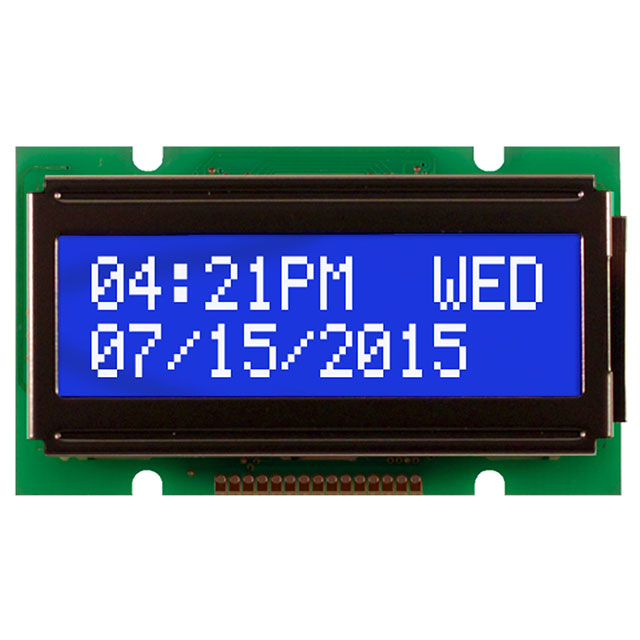

Newhaven Display Intl NHD-0212WH-ATMI-JT#	32 mm	14.5 mm	55.7 mm	2.65 mm	5.5 mm	White	24	5 Dots	8 Dots	-20 ░C	70 °C	0.45 mm	0.6 mm	14.5 mm	46 mm	Parallel	STN - Super-Twisted Nematic	Blue	5.5 V	4.5 V	Transmissive	LED - White	2	12	ST7066

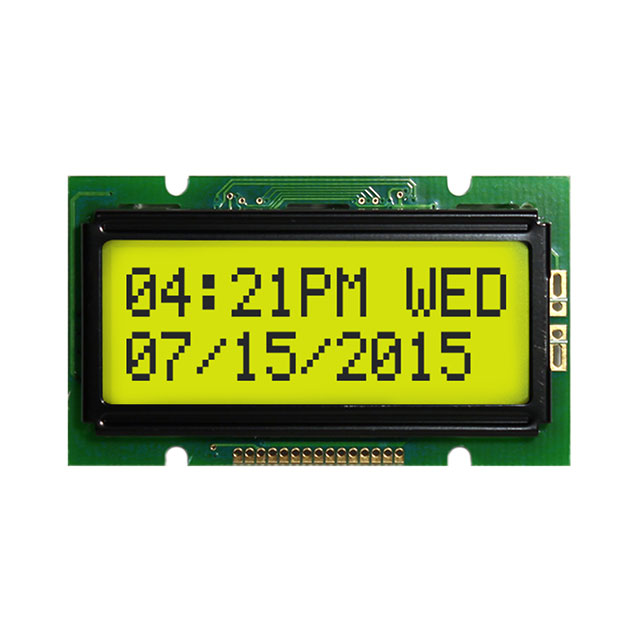

Newhaven Display Intl NHD-0212WH-AYGH-JT#	32 mm	9.7 mm	55.7 mm	2.65 mm	5.5 mm	Blue	24	5 Dots	8 Dots	-20 ░C	70 °C	0.45 mm	0.6 mm	14.5 mm	46 mm	Parallel	STN - Super-Twisted Nematic	Green	5.5 V	4.5 V	Transflective		2	12	ST7066
Newhaven Display Intl NHD-0212WH-AYYH-JT#	32 mm	9.7 mm	55.7 mm	2.65 mm	5.5 mm	Blue	24	5 Dots	8 Dots	-20 ░C	70 °C	0.45 mm	0.6 mm	14.5 mm	46 mm	Parallel	STN - Super-Twisted Nematic	Green	5.5 V	4.5 V	Transflective		2	12	ST7066
