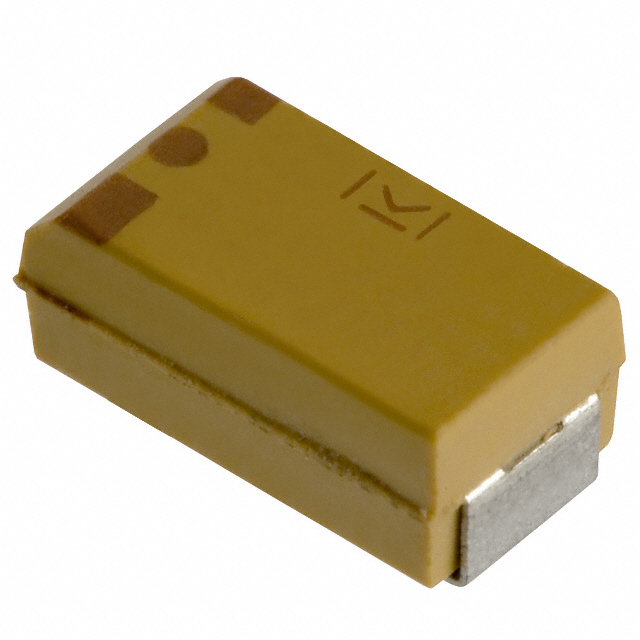

T494C Series

Manufacturer: KEMET

Catalog

SURFACE MOUNT TANTALUM CAPACITOR, 22 ΜF, 10 V, 2312 [6032 METRIC], ± 10%, 0.4 OHM, C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Voltage - Rated	Type	Features	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET T494C226K010AT	-55 C	125 °C	10 %	2312 (6032 Metric)	10 V	Molded	General Purpose	22 µF	400 mOhms	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C686K010AT	-55 C	125 °C	10 %	2312 (6032 Metric)	10 V	Molded	General Purpose	68 µF	300 mOhm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C476M020AT	-55 C	125 °C	20 %	2312 (6032 Metric)	20 V	Molded	General Purpose	47 µF	800 mOhm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C685M035AT	-55 C	125 °C	20 %	2312 (6032 Metric)	35 V	Molded	General Purpose	6.8 µF	900 mOhm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C336M020AT	-55 C	125 °C	20 %	2312 (6032 Metric)	20 V	Molded	General Purpose	33 ÁF	400 mOhms	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C106M020AT	-55 C	125 °C	20 %	2312 (6032 Metric)	20 V	Molded	General Purpose	10 µF	500 mOhms	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C474K050AT	-55 C	125 °C	10 %	2312 (6032 Metric)	50 VDC	Molded	General Purpose	0.47 µF	1.8 Ohm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C337K004AT	-55 C	125 °C	10 %	2312 (6032 Metric)	4 V	Molded	General Purpose	330 µF	90 mOhm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C336M025AT	-55 C	125 °C	20 %	2312 (6032 Metric)	25 VDC	Molded	General Purpose	33 ÁF	1 Ohms	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T494C475K020AT	-55 C	125 °C	10 %	2312 (6032 Metric)	20 V	Molded	General Purpose	4.7 µF	600 mOhm	Surface Mount	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm
