44A1121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

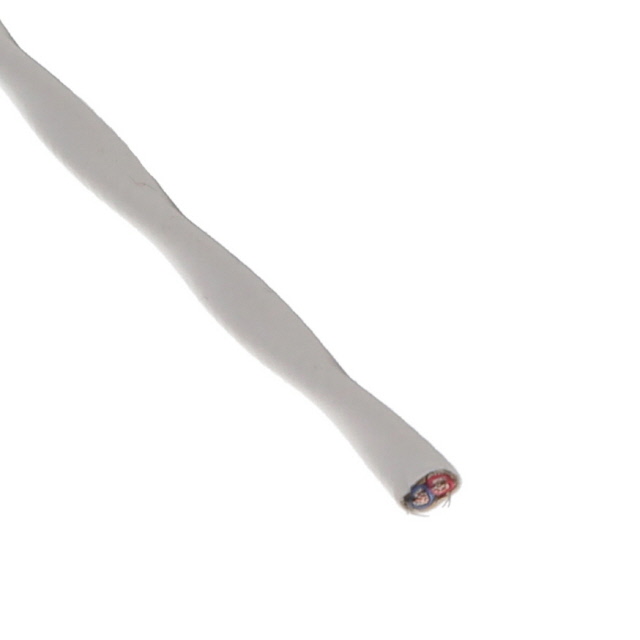

CABLE 2COND 16AWG WHITE SHLD

Part	Cable Type	Conductor Insulation	Shield Coverage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Operating Temperature	Voltage	Jacket (Insulation) Material	Shield Type	Conductor Strand	Conductor Strand [custom]	Spool Size	Spool Size	Length [x]	Length [x]	Length	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Aerospace, Defense and Marine 44A1121-16-6/9-9-MX	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands	29 AWG	Copper Tinned	Copper Tinned	4.67 mm	0.184 in	0.229 mm	0.009 in	16 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid
TE Connectivity Aerospace, Defense and Marine 44A1121-22-9/92-9	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands		Copper Tinned	Copper Tinned	3.35 mm	0.132 in	0.203 mm	0.008 in	22 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid	34 AWG
TE Connectivity Aerospace, Defense and Marine 44A1121-26-2/6-9-US	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2			Copper Tinned	Copper Tinned	2.59 mm	0.102 in	0.203 mm	0.008 in	26 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid	19 38
TE Connectivity Aerospace, Defense and Marine 44A1121-20-2/9-9	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2		32 AWG	Copper Tinned	Copper Tinned	3.76 mm	0.148 in	0.203 mm	0.008 in	20 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid		19
TE Connectivity Aerospace, Defense and Marine 44A1121-16-0/6-9-MX	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands	29 AWG	Copper Tinned	Copper Tinned	4.67 mm	0.184 in	0.229 mm	0.009 in	16 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid
TE Connectivity Aerospace, Defense and Marine 44A1121-16-2/6-9-US	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands	29 AWG	Copper Tinned	Copper Tinned	4.67 mm	0.184 in	0.229 mm	0.009 in	16 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid			1000 ft	304.8 m	25 ft 100 ft	7.62 m 30.5 m	Enter Number of Feet in Order Quantity	1.52 m 300 mm	1 ft 5 '
TE Connectivity Aerospace, Defense and Marine 44A1121-12-0/9-9-US	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	37	28 AWG	Copper Tinned	Copper Tinned	6.5 mm	0.256 in	0.229 mm	0.009 in	12 AWG		600 V	Polyvinylidene Fluoride (PVDF)	Braid								304.8 m	1000 ft	-65 ░C	150 °C
TE Connectivity Aerospace, Defense and Marine 44A1121-22-9/96-9	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands		Copper Tinned	Copper Tinned	3.35 mm	0.132 in	0.203 mm	0.008 in	22 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid	34 AWG
TE Connectivity Aerospace, Defense and Marine 44A1121-16-2/9-9	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands	29 AWG	Copper Tinned	Copper Tinned	4.67 mm	0.184 in	0.229 mm	0.009 in	16 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid
TE Connectivity Aerospace, Defense and Marine 44A1121-22-6/9-9-MX	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	85 %	2	19 Strands		Copper Tinned	Copper Tinned	3.35 mm	0.132 in	0.203 mm	0.008 in	22 AWG	150 °C	600 V	Polyvinylidene Fluoride (PVDF)	Braid	34 AWG				500 '	152.4 m
