2178711 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 18POS 0.1 TIN SMD

Part	Insulation Material	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Connector Type	Style	Voltage Rating	Contact Type	Mounting Type	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Applications	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Color	Fastening Type	Number of Positions

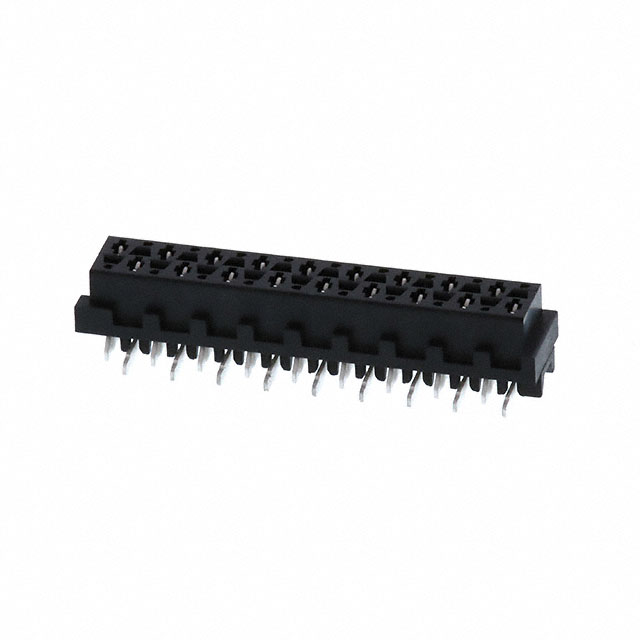

TE Connectivity Raychem Cable Protection 8-2178711-8	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	18	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount	Pick and Place	2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull

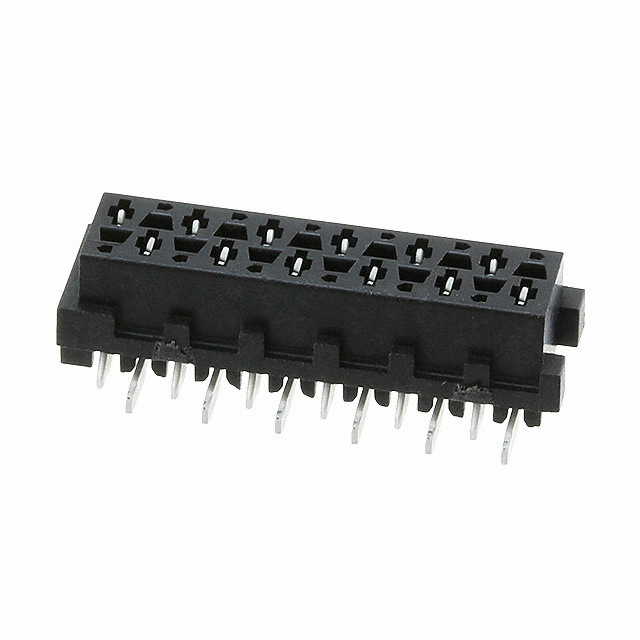

TE Connectivity Raychem Cable Protection 8-2178711-2	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	12	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount	Pick and Place	2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull
TE Connectivity Raychem Cable Protection 7-2178711-6	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	6	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount	Pick and Place	2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull

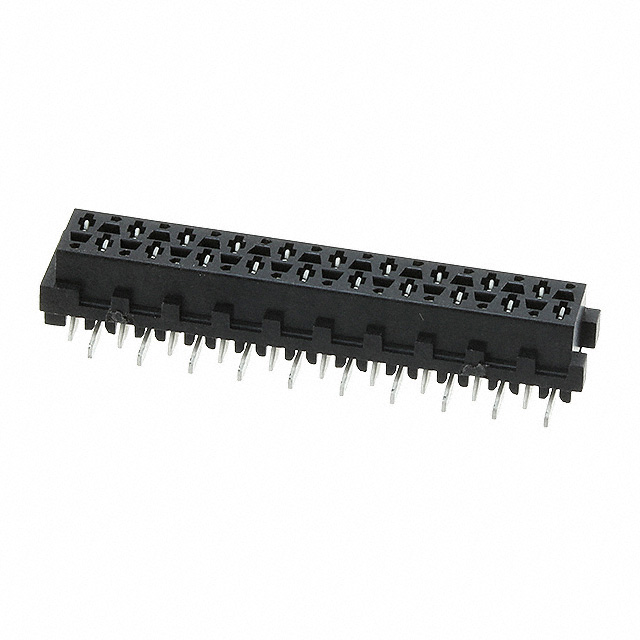

TE Connectivity Raychem Cable Protection 9-2178711-0	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	20	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount	Pick and Place	2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull
TE Connectivity Raychem Cable Protection 1-2178711-2	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	12	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount		2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull

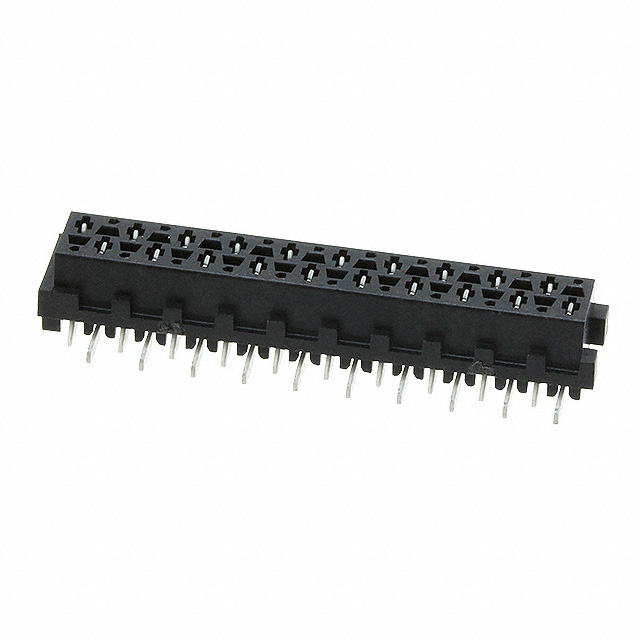

TE Connectivity Raychem Cable Protection 2-2178711-0	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	20	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount		2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull

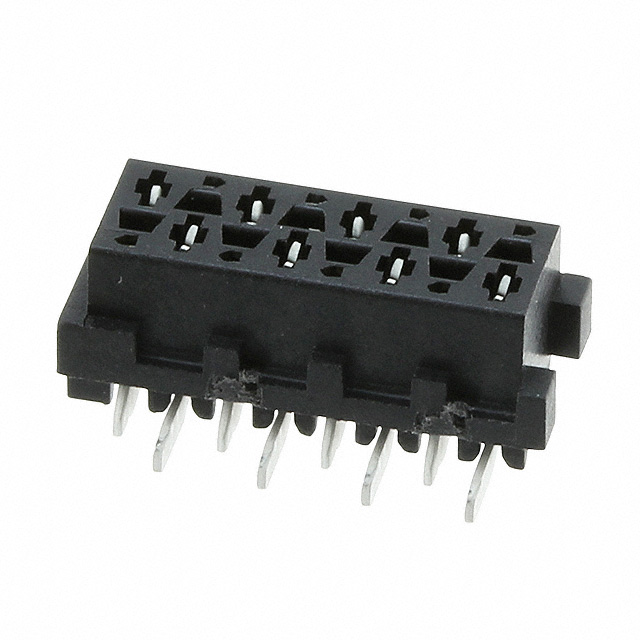

TE Connectivity Raychem Cable Protection 2178711-8	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	8	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount		2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull

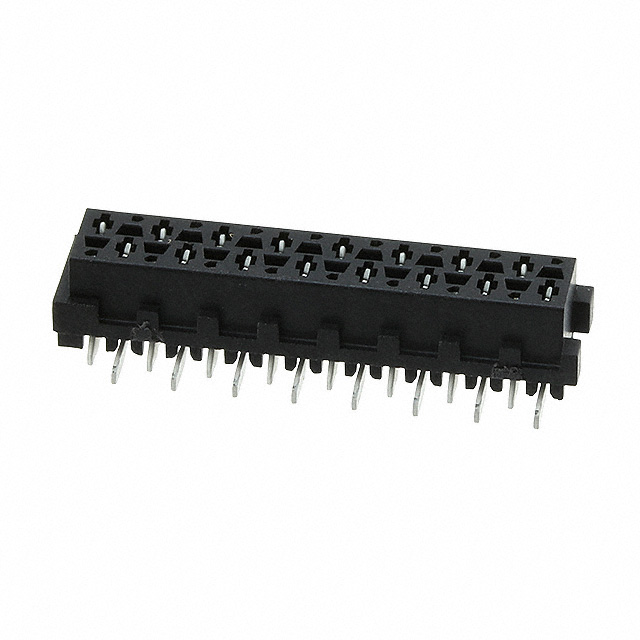

TE Connectivity Raychem Cable Protection 1-2178711-6	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder		0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount		2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull	16
TE Connectivity Raychem Cable Protection 1-2178711-4	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	14	0.1 in	2.54 mm	5.3 mm	0.209 "	Receptacle	Board to Board Cable	100 V	Forked	Surface Mount		2.54 mm	0.1 in	-30 ░C	85 °C	Tin	3 µm	118.1 µin	2	General Purpose Telecommunications	All	118.1 µin	3 µm	Brass	Black	Push-Pull
