TPS74801-Q1 Series

Automotive, 1.5-A low-VIN (0.8 V) adjustable LDO voltage regulator with power good and enable

Catalog

Automotive, 1.5-A low-VIN (0.8 V) adjustable LDO voltage regulator with power good and enable

Part	Channels per IC	Board Type	Supplied Contents	Current - Output	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Regulator Type	Package / Case	Control Features	Output Configuration	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Output (Max) [Max]	Supplier Device Package	Number of Regulators	Protection Features	PSRR [Max]	PSRR [Min]	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Qualification	Grade
Texas Instruments TPS74801EVM-177	1 - Single	Fully Populated	Board(s)	1.5 A	1.2 V	5.5 V	2.83 V	TPS74801	Positive Adjustable
Texas Instruments TPS74801RGWR				1.5 A						20-VQFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.16 V	Surface Mount	125 °C	-40 °C	Adjustable	3.6 V	20-VQFN (5x5)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	50 dB	30 dB	5.5 V
Texas Instruments TPS74801RGWT				1.5 A						20-VQFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.16 V	Surface Mount	125 °C	-40 °C	Adjustable	3.6 V	20-VQFN (5x5)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	50 dB	30 dB	5.5 V
Texas Instruments TPS74801QWDRCRQ1				1.5 A						10-VFDFN Exposed Pad		Positive	0.8 V	0.165 V	Surface Mount	105 ░C	-40 °C	Adjustable	3.6 V	10-VSON (3x3)	1	Over Temperature	60 dB	30 dB	5.5 V	50 çA
Texas Instruments TPS74801TDRCRQ1				1.5 A						10-VFDFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.16 V	Surface Mount	105 ░C	-40 °C	Adjustable	3.6 V	10-VSON (3x3)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	50 dB	30 dB	5.5 V		AEC-Q100	Automotive
Texas Instruments TPS74801DRCRM3				1.5 A						10-VFDFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.165 V	Surface Mount	125 ¯C	-40 °C	Adjustable	3.6 V	10-VSON (3x3)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	60 dB	30 dB	5.5 V	2 mA
Texas Instruments TPS74801QDRCRM3Q1				1.5 A						10-VFDFN Exposed Pad		Positive	0.8 V	0.165 V	Surface Mount			Adjustable	3.6 V	10-VSON (3x3)	1	Over Temperature	60 dB	30 dB	5.5 V	50 çA
Texas Instruments TPS74801DRCRG4				1.5 A						10-VFDFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.16 V	Surface Mount	125 °C	-40 °C	Adjustable	3.6 V	10-VSON (3x3)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	50 dB	30 dB	5.5 V
Texas Instruments TPS74801DRCTG4				1.5 A						10-VFDFN Exposed Pad	Enable Power Good Soft Start	Positive	0.8 V	0.16 V	Surface Mount	125 °C	-40 °C	Adjustable	3.6 V	10-VSON (3x3)	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	50 dB	30 dB	5.5 V

Catalog

Automotive, 1.5-A low-VIN (0.8 V) adjustable LDO voltage regulator with power good and enable

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAVOUT range: 0.8V to 3.6VUltra-low VIN range: 0.8V to 5.5VVBIAS range 2.7V to 5.5VLow dropout: 60mV typ at 1.5A, VBIAS = 5VPower-good (PG) output allows supply monitoring or provides a sequencing signal for other supplies2% accuracy over line, load, and temperatureProgrammable soft-start provides linear voltage start-upVBIAS permits low VIN operation with good transient responseStable with any output capacitor ≥ 2.2µFAvailable in small 3mm × 3mm × 1mm VSON-10 and 5mm × 5mm VQFN-20 packagesAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAVOUT range: 0.8V to 3.6VUltra-low VIN range: 0.8V to 5.5VVBIAS range 2.7V to 5.5VLow dropout: 60mV typ at 1.5A, VBIAS = 5VPower-good (PG) output allows supply monitoring or provides a sequencing signal for other supplies2% accuracy over line, load, and temperatureProgrammable soft-start provides linear voltage start-upVBIAS permits low VIN operation with good transient responseStable with any output capacitor ≥ 2.2µFAvailable in small 3mm × 3mm × 1mm VSON-10 and 5mm × 5mm VQFN-20 packages

Description

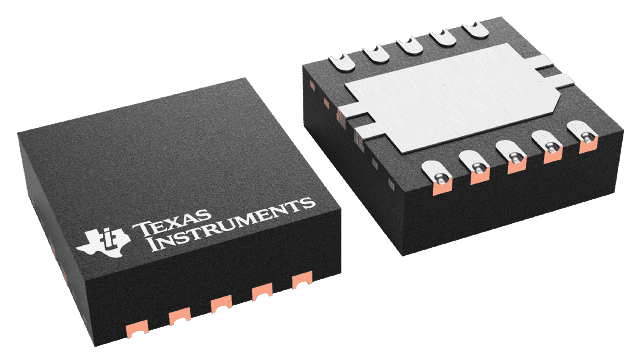

The TPS74801-Q1 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows a solution to be configured that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements. A precision reference and error amplifier delivers 2% accuracy over load, line, temperature, and process. The device is stable with any type of output capacitor greater than or equal to 2.2µF, and is fully specified for TJ = –40°C to +150°C for the new chip, TJ = –40°C to +105°C for the DRC package, and TJ = –40°C to +125°C for the RGW package. The TPS74801-Q1 is offered in a small 3mm × 3mm VSON-10 package, yielding a highly compact, total solution size. The device is also available in a 5mm × 5mm VQFN-20. The TPS74801-Q1 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows a solution to be configured that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements. A precision reference and error amplifier delivers 2% accuracy over load, line, temperature, and process. The device is stable with any type of output capacitor greater than or equal to 2.2µF, and is fully specified for TJ = –40°C to +150°C for the new chip, TJ = –40°C to +105°C for the DRC package, and TJ = –40°C to +125°C for the RGW package. The TPS74801-Q1 is offered in a small 3mm × 3mm VSON-10 package, yielding a highly compact, total solution size. The device is also available in a 5mm × 5mm VQFN-20.
