BAV103 Series

General Purpose High Voltage Diode

Catalog

General Purpose High Voltage Diode

Part	Reverse Recovery Time (trr)	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package	Current - Average Rectified (Io)
ON Semiconductor BAV103	50 ns	Any Speed	200 mA	1.25 V	-50 °C	175 ░C	DO-213AA	5 µA	Surface Mount	200 V	Standard	DO-213AA (MINIMELF)	200 mA

Catalog

General Purpose High Voltage Diode

Description

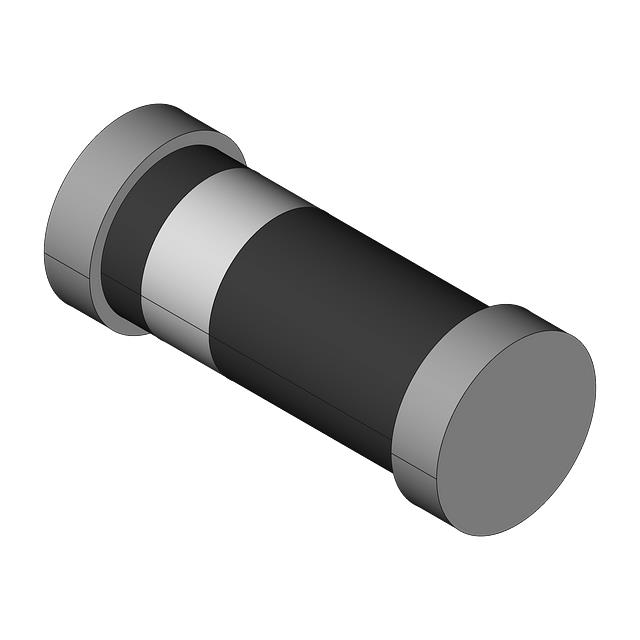

A General Purpose diode that couples high forward conductance fast switching speed and high blocking voltages in a glass leadless LL-34 Surface Mount package. Placement of the Expansion Gap has no relationship to the location of the Cathode Terminal which is indicated by the first color band.
