100AWSP4 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Electrical Life (Cycles)	Actuator Material	Termination Style	Voltage Rating - DC	Circuit	Illumination	Voltage Rating - AC	Ingress Protection Description	Ingress Protection IP Rating	Features	Mounting Type	Bushing Thread	Current Rating	Switch Function	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape
E-Switch 100AWSP4T2B4VS2QE	30000 Cycles	Brass Chrome Plated	PC Pin	28 V	SPDT	Non-Illuminated	120 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Through Hole	Unthreaded	5 A	Mom-Off-Mom	Standard Round	85 °C	-30 °C	7.62 mm
E-Switch 100AWSP4T1B4M2RE	30000 Cycles	Brass Chrome Plated	PC Pin	20 V	SPDT	Non-Illuminated	20 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Through Hole	Unthreaded	0.4 VA	Mom-Off-Mom	Standard Round	85 °C	-30 °C	0.5 in

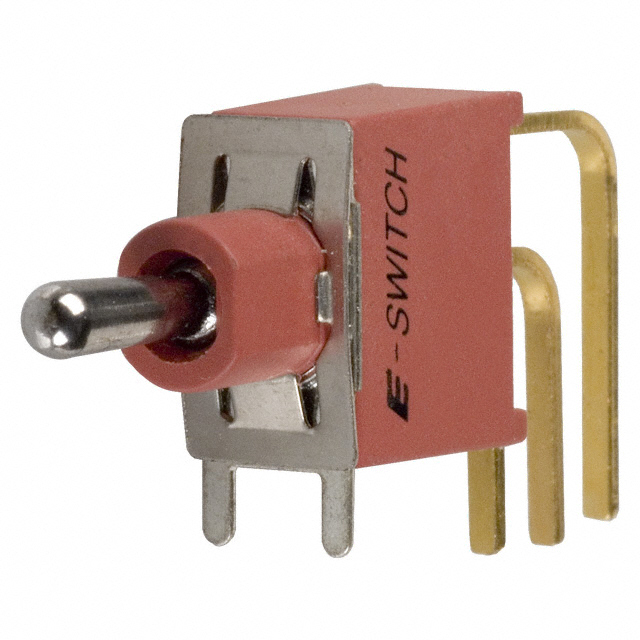

E-Switch 100AWSP4T2B4M7RE	30000 Cycles	Brass Chrome Plated	PC Pin	20 V	SPDT	Non-Illuminated	20 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Right Angle Through Hole Vertical	Unthreaded	0.4 VA	Mom-Off-Mom	Standard Round	85 °C	-30 °C	7.62 mm

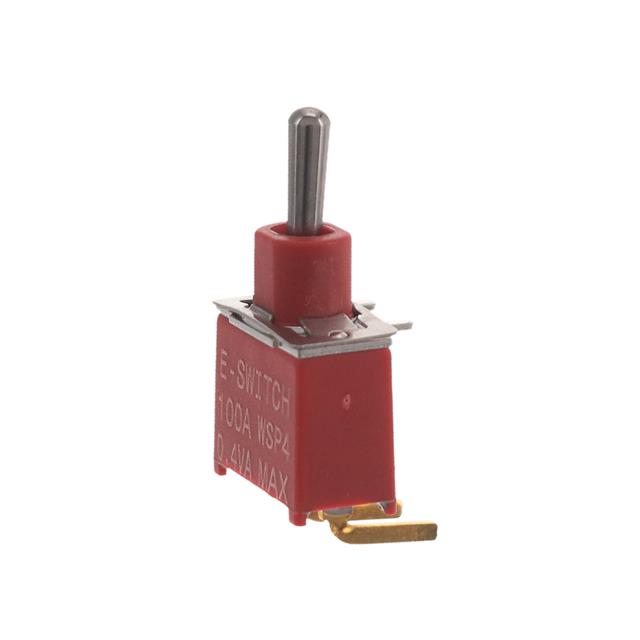

E-Switch 100AWSP4T2B4M6RE	30000 Cycles	Brass Chrome Plated	PC Pin	20 V	SPDT	Non-Illuminated	20 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Right Angle Through Hole	Unthreaded	0.4 VA	Mom-Off-Mom	Standard Round	85 °C	-30 °C	7.62 mm
E-Switch 100AWSP4T1B1M1QEH	30000 Cycles	Brass Chrome Plated	Solder Lug	28 V	SPDT	Non-Illuminated	120 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Panel Mount	1/4-40	5 A	Mom-Off-Mom	Standard Round	85 °C	-30 °C	10.41 mm	0.25 "	Circular
E-Switch 100AWSP4T1B4VS2RE	30000 Cycles	Brass Chrome Plated	PC Pin	20 V	SPDT	Non-Illuminated	20 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Through Hole	Unthreaded	0.4 VA	Mom-Off-Mom	Standard Round	85 °C	-30 °C	0.5 in
E-Switch 100AWSP4T1B4VS2QE	30000 Cycles	Brass Chrome Plated	PC Pin	28 V	SPDT	Non-Illuminated	120 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Through Hole	Unthreaded	5 A	Mom-Off-Mom	Standard Round	85 °C	-30 °C	0.5 in
E-Switch 100AWSP4T1B4M1QE	30000 Cycles	Brass Chrome Plated	Solder Lug	28 V	SPDT	Non-Illuminated	120 V	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	Panel Mount	Unthreaded	5 A	Mom-Off-Mom	Standard Round	85 °C	-30 °C	0.5 in
