MN22TJ Series

Catalog

SNAP-IN MOUNT MINIATURE ROCKER

Part	Electrical Life	Mechanical Life	Color - Actuator/Cap	Switch Function	Approval Agency	Illumination Voltage (Nominal)	Mounting Type	Circuit	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Current Rating (Amps)
NKK Switches MN22TJG03-FF-3A-FF
NKK Switches MN22TJW03-GA-3A-FE
NKK Switches MN22TJG03
NKK Switches MN22TJG01-FB-3A-EE	50000 Cycles	50000 Cycles	White	On-On	UL	2.1 VDC	Panel Mount Snap-In	DPDT	LED Yellow/Yellow	No Marking	28 V	85 °C	-30 ░C	Concave (Standard V) - Illuminated	Solder Lug	15.9 mm	18.7 mm	28 V	0.4 VA
NKK Switches MN22TJG03-GB-1B
NKK Switches MN22TJG01-GB-3A-EE	50000 Cycles	50000 Cycles	White	On-On	UL	2.1 VDC	Panel Mount Snap-In	DPDT	LED Yellow/Yellow	No Marking	28 V	85 °C	-30 ░C	Actuator Arm Cap Required Illuminated	Solder Lug	13.1 mm	15.9 mm	28 V	0.4 VA
NKK Switches MN22TJG01	50000 Cycles	50000 Cycles		On-On	UL		Panel Mount Snap-In	DPDT		Varies by Cap	28 V	85 °C	-30 ░C	Actuator Arm Cap Required	Solder Lug	13.1 mm	15.9 mm	28 V	0.4 VA

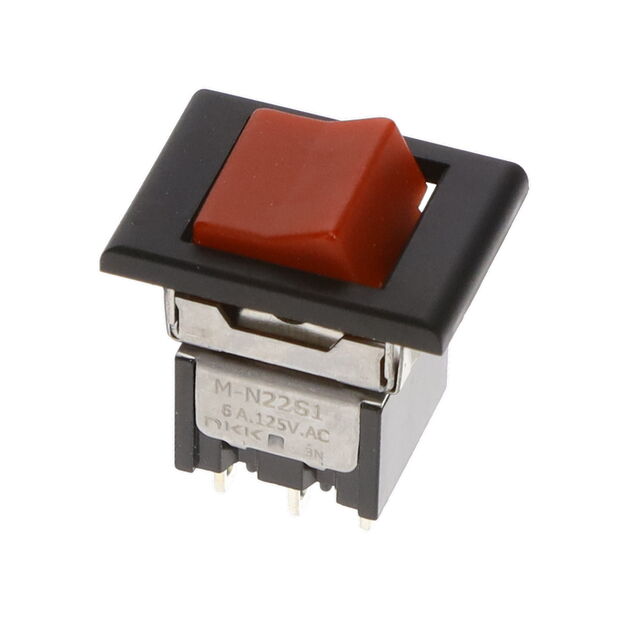

NKK Switches MN22TJW01-FC-1A	25000 Steps	50000 Cycles	Red	On-On	UL		Panel Mount Snap-In	DPDT		No Marking	30 V	85 °C	-30 ░C	Concave	Solder Lug	13.1 mm	15.9 mm	125 V	4 A 6 A
NKK Switches MN22TJW01-GC	25000 Steps	50000 Cycles	Red	On-On	UL		Panel Mount Snap-In	DPDT		No Marking	30 V	85 °C	-30 ░C	Paddle	Solder Lug	13.1 mm	15.9 mm	125 V	4 A 6 A
NKK Switches MN22TJW01-GC-1C	25000 Steps	50000 Cycles	Red	On-On	UL		Panel Mount Snap-In	DPDT		No Marking	30 V	85 °C	-30 ░C	Paddle	Solder Lug	13.1 mm	15.9 mm	125 V	4 A 6 A
