9880 Series
Manufacturer: Belden Inc.
Beta
⌘K

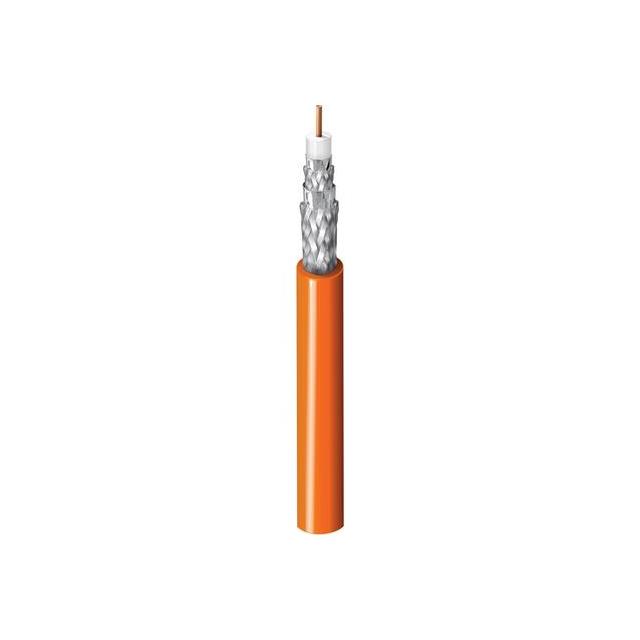

11H 50 OHM TRUNK CABLE
| Part | Conductor Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Jacket Color | Features | Wire Gauge | Conductor Strand | Impedance | Length [x] | Length [x] | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 90 % 94 % 100 % | 0.243 in | 6.17 mm | Aluminum Copper Tinned | Foam Polyethylene (FPE) | 60 °C | -40 C | 78 | Yellow | Quad Shield | 12 AWG | Solid | 50 Ohms | 1640 ft | 500 m | Coaxial | Poly-Vinyl Chloride (PVC) | 10.29 mm | 0.405 " | Braid Foil |
Belden Inc. | Copper Bare | 90 % 94 % 100 % | 0.243 in | 6.17 mm | Aluminum Copper Tinned | Foam Polyethylene (FPE) | 60 °C | -40 C | 78 | Yellow | Quad Shield | 12 AWG | Solid | 50 Ohms | 1000 ft | 304.8 m | Coaxial | Poly-Vinyl Chloride (PVC) | 10.29 mm | 0.405 " | Braid Foil |
Belden Inc. | Copper Bare | 90 % 94 % 100 % | 0.243 in | 6.17 mm | Aluminum Copper Tinned | Foam Polyethylene (FPE) | 60 °C | -40 C | 78 | Yellow | Quad Shield | 12 AWG | Solid | 50 Ohms | 500 ft | 152.4 m | Coaxial | Poly-Vinyl Chloride (PVC) | 10.29 mm | 0.405 " | Braid Foil |
