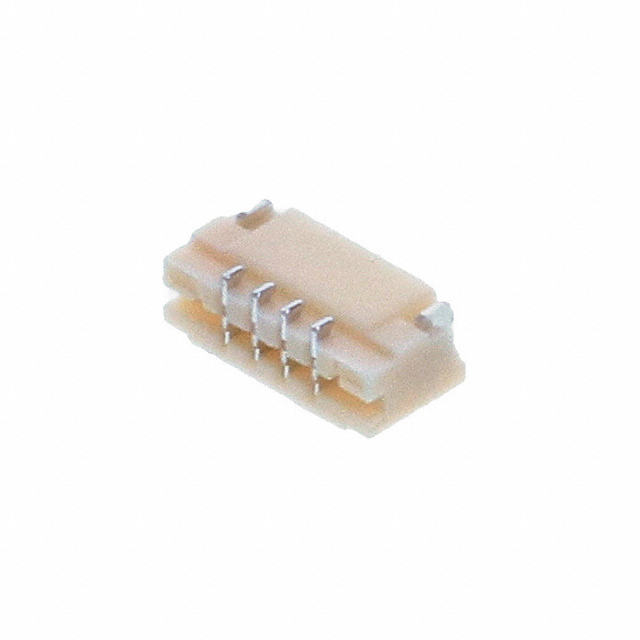

SM04B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 4POS 0.6MM
| Part | Applications | Mounting Type | Voltage Rating | Shrouding | Number of Positions Loaded | Current Rating (Amps) | Contact Type | Insulation Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Finish - Post | Number of Rows | Connector Type | Insulation Height [custom] | Insulation Height [custom] | Style | Contact Material | Termination | Material Flammability Rating | Contact Shape | Features | Number of Positions | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | Right Angle Surface Mount | 30 VDC | Shrouded - 4 Wall | All | 0.2 A | Outer Shroud Contact | Nylon Polyamide (PA) | Friction Lock | 85 °C | -25 °C | Natural | Tin | 1 | Header | 1.45 mm | 0.057 in | Board to Cable/Wire | Copper Alloy | Solder | UL94 V-0 | Rectangular | Solder Retention | 4 | 0.6 mm | 0.024 in |
