8525 Series

Catalog

HOOK-UP STRND 24AWG GRN

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Voltage	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Cable Type	Jacket (Insulation) Material	Features	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Qualification	Length	Length	Operating Temperature
Belden Inc. 8525 005100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Green	0.058 in	1.47 mm	MIL-W-76C Type MW
Belden Inc. 8525 003100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Orange	0.058 in	1.47 mm	MIL-W-76C Type MW
Belden Inc. 8525 0191000	0.43 mm	0.017 "	Copper Tinned	1 kV			7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	White Brown Stripe	0.058 in	1.47 mm	MIL-W-76C Type MW	304.8 m	1000 ft
Belden Inc. 8525 0051000	0.43 mm	0.017 "	Copper Tinned	1 kV			7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Green	0.058 in	1.47 mm	MIL-W-76C Type MW	304.8 m	1000 ft
Belden Inc. 8525 006100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Blue	0.058 in	1.47 mm	MIL-W-76C Type MW			80 °C
Belden Inc. 8525 002100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Red	0.058 in	1.47 mm	MIL-W-76C Type MW
Belden Inc. 8525 0021000	0.43 mm	0.017 "	Copper Tinned	1 kV			7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Red	0.058 in	1.47 mm	MIL-W-76C Type MW	304.8 m	1000 ft

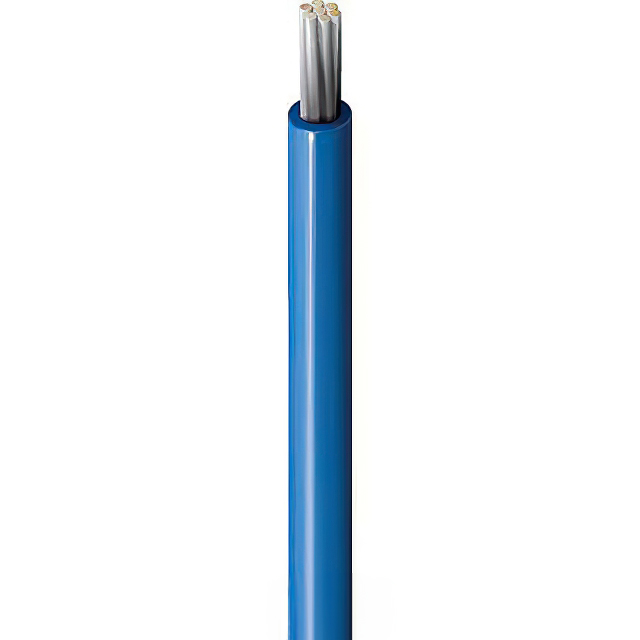

Belden Inc. 8525 007100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Violet	0.058 in	1.47 mm	MIL-W-76C Type MW
Belden Inc. 8525 009100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	White	0.058 in	1.47 mm	MIL-W-76C Type MW
Belden Inc. 8525 010100	0.43 mm	0.017 "	Copper Tinned	1 kV	100 ft	30.5 m	7	32 AWG	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Black	0.058 in	1.47 mm	MIL-W-76C Type MW			80 °C
