BD82001FVJ-LB Series

1ch High Side Switch ICs for USB Devices and Memory Cards

Catalog

1ch High Side Switch ICs for USB Devices and Memory Cards

Part	Fault Protection	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Number of Outputs	Output Configuration	Interface	Input Type	Ratio - Input:Output [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Rds On (Typ)	Current - Output (Max) [Max]	Supplier Device Package	Mounting Type	Features	Voltage - Supply (Vcc/Vdd)	Switch Type

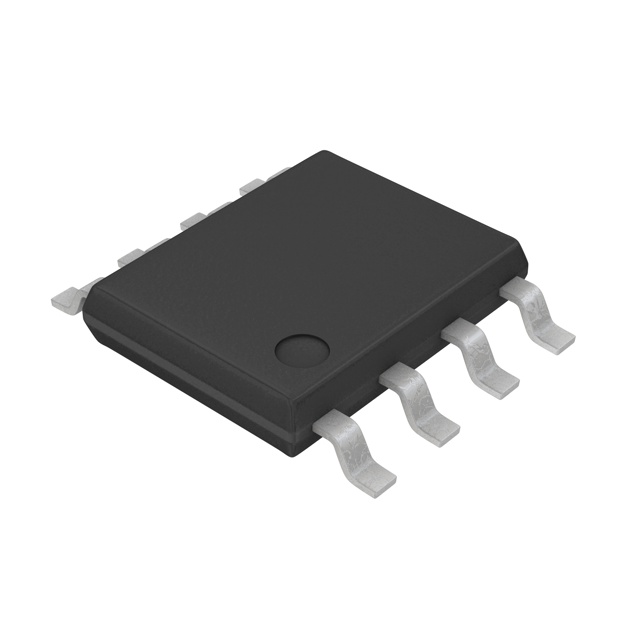

Rohm Semiconductor BD82001FVJ-E2	Current Limiting (Fixed) Over Temperature UVLO	N-Channel	5.5 V	2.7 V	1	High Side	On/Off	Non-Inverting	1:1	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	70 mOhm	1 A	8-TSSOP-BJ	Surface Mount	Slew Rate Controlled Status Flag		USB Switch
Rohm Semiconductor BD82001FVJ-LBE2	Current Limiting (Fixed) Over Temperature UVLO	N-Channel	5.5 V	2.7 V	1	High Side	On/Off	Non-Inverting	1:1	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	70 mOhm	1.5 A	8-TSSOP-BJ	Surface Mount	Load Discharge Status Flag		USB Switch

Catalog

1ch High Side Switch ICs for USB Devices and Memory Cards

Description

This is the product guarantees long time support in Industrial market. Single channel high side switch IC for USB port is a high side switch having over current protection used in power supply line of universal serial bus (USB). N-channel power MOSFET of low on resistance and low supply current are realized in this , over current detection circuit, thermal shutdown circuit, under voltage lockout and soft start circuit are built in.
