EN3P12 Series

Catalog

CONN RCPT FMALE 12P SOLDER CUP

Part	Shielding	Voltage Rating	Primary Material	Connector Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Orientation	Material Flammability Rating	Color	Ingress Protection	Applications	Mounting Feature	Contact Material	Number of Positions	Insert Material	Contact Finish - Mating	Mounting Type	Termination

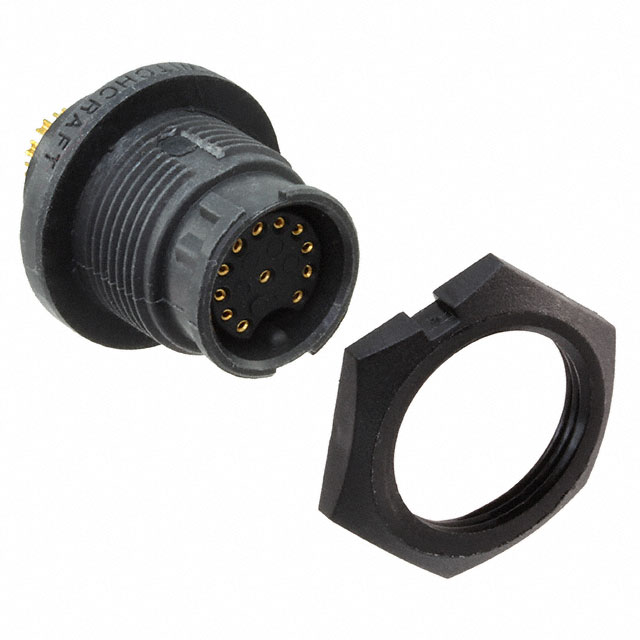

Switchcraft Inc. EN3P12F26SX	Unshielded	250 VAC	Plastic	Receptacle Female Sockets	3 A	65 °C	-40 °C	Bayonet Lock	Keyed	UL94 V-0	Black	IP66/IP68	General Purpose Instrumentation Marine Medical	Bulkhead - Front Side Nut	Copper Alloy	12	Elastomer	Gold

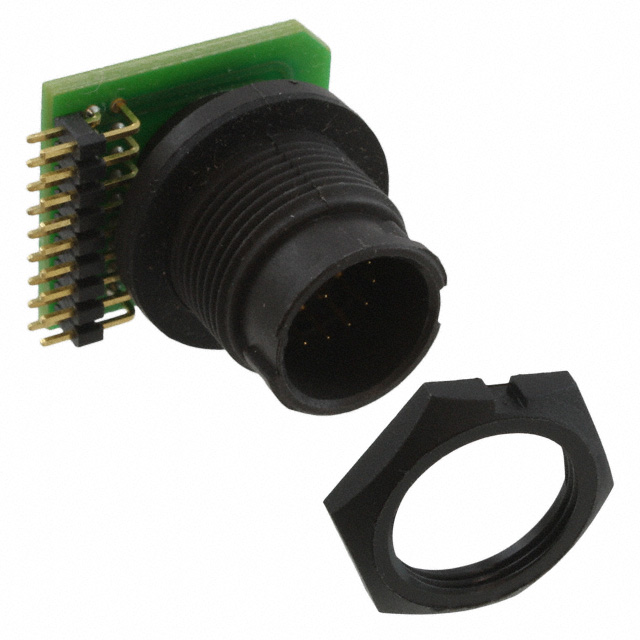

Switchcraft Inc. EN3P12MRAPCBN	Unshielded	250 VAC	Plastic	Male Pins Receptacle	2 A	65 °C	-40 °C	Bayonet Lock	Keyed	UL94 V-0	Black	IP66/IP68	General Purpose Instrumentation Marine Medical	Bulkhead - Front Side Nut	Copper Alloy	12	Elastomer	Gold	Panel Mount Right Angle Through Hole	Circuit Board Solder

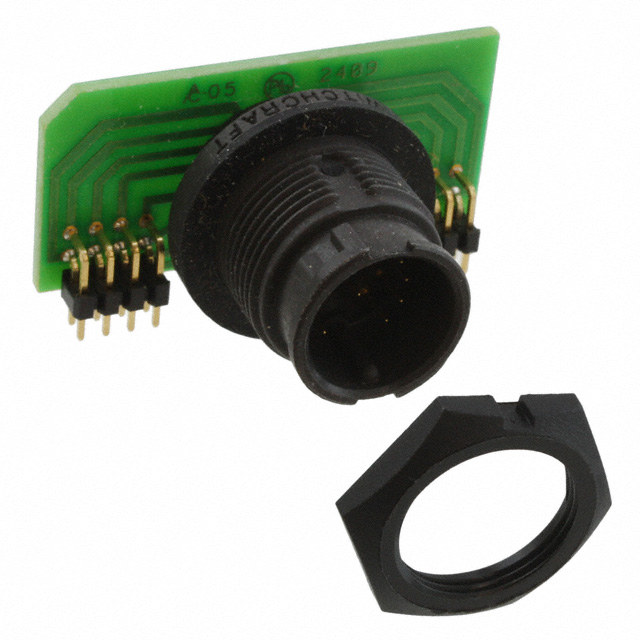

Switchcraft Inc. EN3P12MRAPCBW	Unshielded	250 VAC	Plastic	Male Pins Receptacle	2 A	65 °C	-40 °C	Bayonet Lock	Keyed	UL94 V-0	Black	IP66/IP68	General Purpose Instrumentation Marine Medical	Bulkhead - Front Side Nut	Copper Alloy	12	Elastomer	Gold	Panel Mount Right Angle Through Hole	Circuit Board Solder
