001456 Series

Manufacturer: Molex

Catalog

Catalog

CONN RCPT 24POS IDC 24AWG GOLD

...

Part	Number of Rows	Color	Connector Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Cable Termination	Mounting Type	Wire Type	Wire Gauge	Number of Positions	Pitch	Pitch	Fastening Type
Molex 0014563244	1	Black	Receptacle	Female Socket	0.38 µm	15 µin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	24 AWG	24	0.1 "	2.54 mm
Molex 0014568022	1	Black	Receptacle	Female Socket	0.76 Ám	30 Áin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	22 AWG	2	0.1 "	2.54 mm	Latch Lock
Molex 0014567201	1	Black	Receptacle	Female Socket	3.81 Ám	150 Áin	Tin	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	22 AWG	20	0.1 "	2.54 mm
Molex 0014562137	1	Black	Receptacle	Female Socket	0.76 Ám	30 Áin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	24 AWG	13	0.1 "	2.54 mm
Molex 0014567220	1	Black	Receptacle	Female Socket	3.81 Ám	150 Áin	Tin	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	22 AWG	22	0.1 "	2.54 mm
Molex 0014563095	1	Black	Receptacle	Female Socket	0.38 µm	15 µin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	24 AWG	9	0.1 "	2.54 mm
Molex 0014563202	1	Black	Receptacle	Female Socket	0.76 Ám	30 Áin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	28 AWG	20	0.1 "	2.54 mm
Molex 0014563124	1	Black	Receptacle	Female Socket	0.38 µm	15 µin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	24 AWG	12	0.1 "	2.54 mm

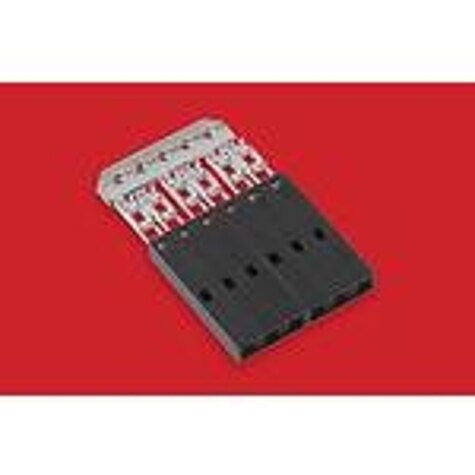

Molex 0014567034	1	Black	Receptacle	Female Socket	0.38 µm	15 µin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	22 AWG		0.1 "	2.54 mm
Molex 0014562027	1	Black	Receptacle	Female Socket	0.76 Ám	30 Áin	Gold	Closed End	IDC	Free Hanging (In-Line)	Discrete Ribbon Cable	24 AWG	2	0.1 "	2.54 mm
