8637-0 Series

Catalog

CONN RECEPT PIN .015-.021" .138"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Termination

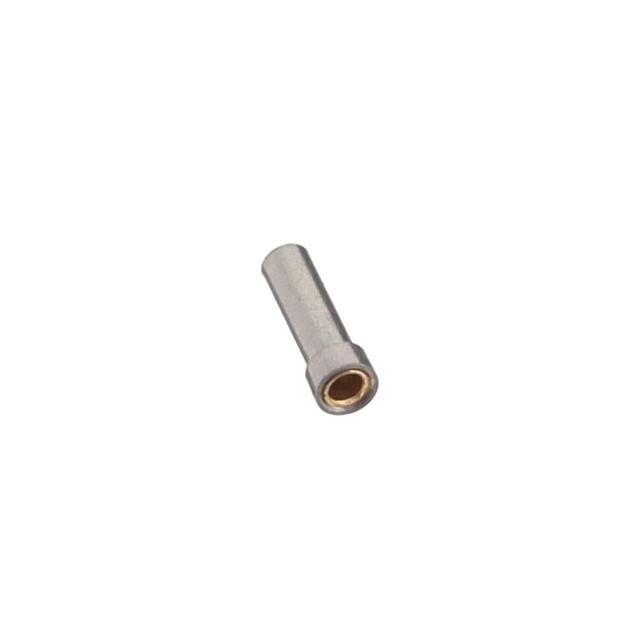

Mill-Max Manufacturing Corp. 8637-0-15-01-21-27-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.031 in	0.79 mm	30 Áin	0.76 Ám	Gold	0.046 "	1.17 mm	Beryllium Copper	0.037 in	0.94 mm	No Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	3.51 mm	0.138 in	Solder
Mill-Max Manufacturing Corp. 8637-0-15-01-21-02-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.031 in	0.79 mm	100 µin	2.54 µm	Tin-Lead	0.046 "	1.17 mm	Beryllium Copper	0.037 in	0.94 mm	No Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	3.51 mm	0.138 in	Solder
