UCLAMP Series

Catalog

TVS DIODE

Part	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Bidirectional Channels	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Applications	Bidirectional Channels [custom]	Package / Case	Unidirectional Channels
Semtech Corporation UCLAMP5013V.TFT

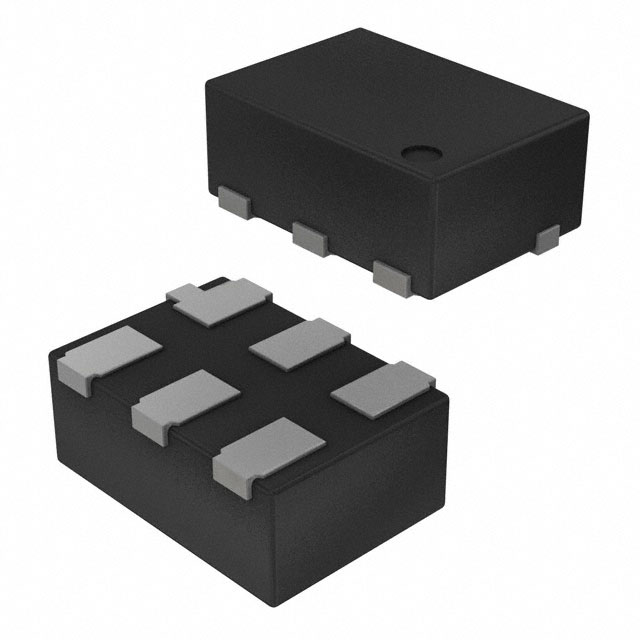

Semtech Corporation UCLAMP0555T.TNT	30 W	2 A	Surface Mount	Zener	-55 ░C	125 °C	5	SLP1007N6T	5 V	15 V	6-XFDFN	7 pF	6 V	General Purpose
Semtech Corporation UCLAMP3311Z.TNT	30 W	4 A	Surface Mount	Zener	-40 °C	85 °C		SLP0603P2X3	3.3 V	7.5 V	0201	6 pF	3.65 V	General Purpose	1	0603 Metric
Semtech Corporation UCLAMP0505T.TCT	25 W	2 A	Surface Mount	Zener	-55 ░C	125 °C		SLP1313P6T	5 V	12.5 V	6-XFDFN Exposed Pad	10 pF	6 V	General Purpose			5
Semtech Corporation UCLAMP0506A.TCT	100 W	7 A	Surface Mount	Zener	-55 ░C	125 °C	5	SC-89 (SOT-666)	5 V	12 V	SOT-563 SOT-666	30 pF	6 V	General Purpose
Semtech Corporation UCLAMP0512Z.TFT	30 W	2 A	Surface Mount	Zener	-40 C	125 °C	2	SLP0603P3X3A	5 V	15 V	0201	1 MHz 5 pF	6 V	General Purpose		0603 Metric
Semtech Corporation UCLAMP0541Z.TVT	25 W	2 A	Surface Mount	Zener	-55 ░C	125 °C		SLP0603P2X3	5 V	15 V	0201	1 MHz 6.5 pF	6 V	General Purpose	1	0603 Metric
Semtech Corporation UCLAMP3311Z.TVT	30 W	4 A	Surface Mount	Zener	-40 °C	85 °C		SLP0603P2X3	3.3 V	7.5 V	0201	6 pF	3.65 V	General Purpose	1	0603 Metric

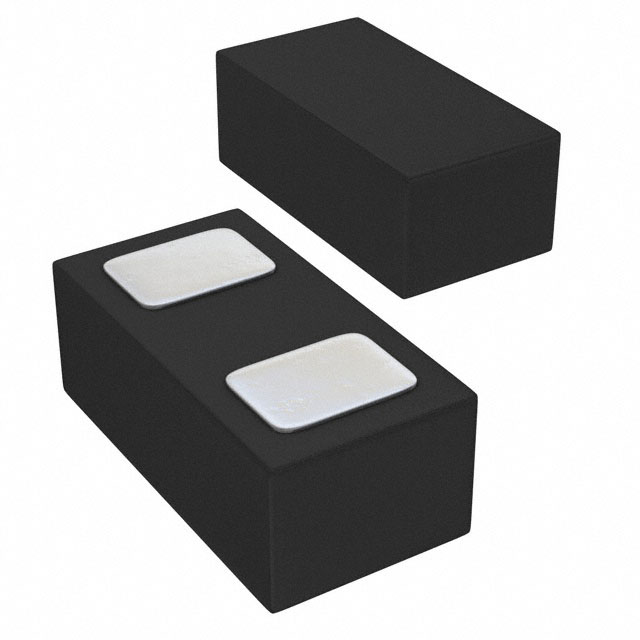

Semtech Corporation UCLAMP0541Z2ATKT	30 W	2 A	Surface Mount	Zener	-40 C	125 °C		SLP0402P2X4F	5 V	15 V	2-XFDFN	1 MHz 6.5 pF	6.5 V	General Purpose	1
Semtech Corporation UCLAMP0545T.TNT	12 W	2 A	Surface Mount	Zener	-55 ░C	125 °C	5	SLP1007N6T	5 V	12 V	6-XFDFN	4.5 pF	6 V	General Purpose
