NID100 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

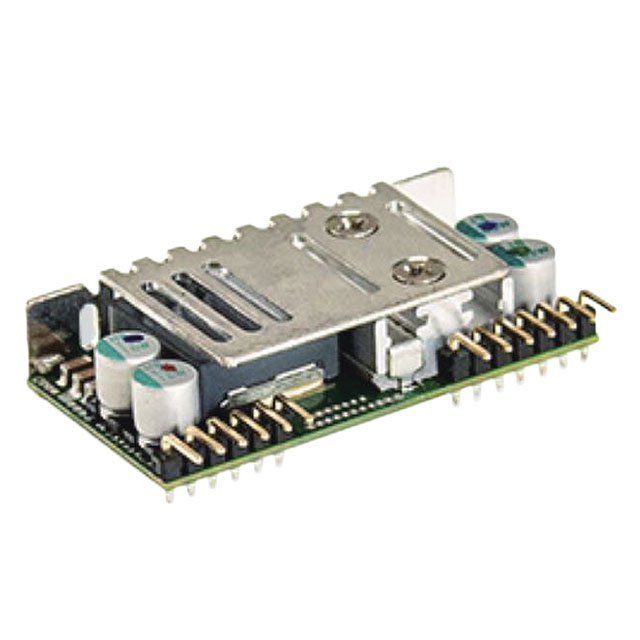

DC DC CONVERTER 24V 101W
| Part | Package / Case | Applications | Voltage - Input (Max) [Max] | Approval Agency | Current - Output (Max) [Max] | Number of Outputs | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Power (Watts) | Type | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Features | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 13-SIP Module | ITE (Commercial) | 53 V | CE EAC | 4.2 A | 1 | Through Hole | 85 °C | -30 °C | 30 V | 101 W | Non-Isolated PoL Module | 24 V | 2 in | 12 mm | 27.5 mm | 50.8 mm | 1.08 " | 0.47 " | Remote On/Off | 96 % |
MEAN WELL USA Inc. | 13-SIP Module | ITE (Commercial) | 53 V | CE EAC | 7.5 A | 1 | Through Hole | 85 °C | -30 °C | 20 V | 90 W | Non-Isolated PoL Module | 12 V | 2 in | 12 mm | 27.5 mm | 50.8 mm | 1.08 " | 0.47 " | Remote On/Off | 96 % |
MEAN WELL USA Inc. | 13-SIP Module | ITE (Commercial) | 53 V | CE EAC | 11 A | 1 | Through Hole | 85 °C | -30 °C | 10.5 V | 55 W | Non-Isolated PoL Module | 5 V | 2 in | 12 mm | 27.5 mm | 50.8 mm | 1.08 " | 0.47 " | Remote On/Off | 93 % |
