2538-B Series
Manufacturer: Oupiin
Beta
⌘K

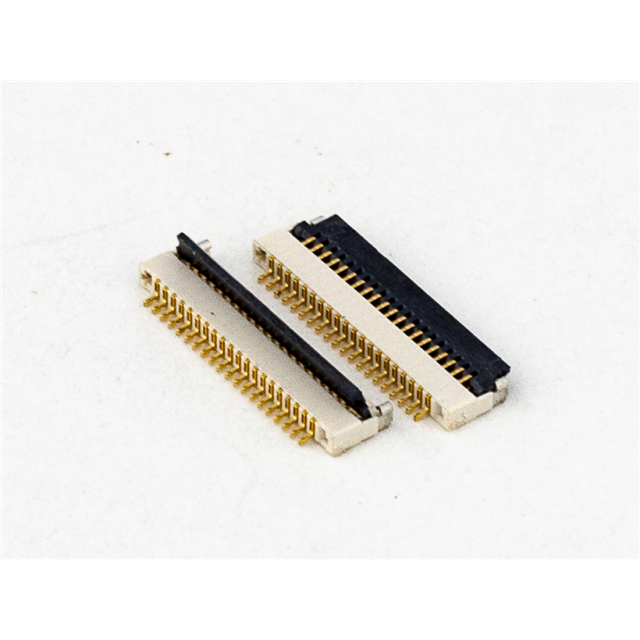

CONN FFC FPC 24POS 0.5MM R/A
| Part | Contact Finish Thickness | Mating Cycles | Housing Color | Current Rating (Amps) | Actuator Color | Contact Finish | Cable End Type | Contact Material | FFC, FCB Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Locking Feature | Housing Material | Actuator Material | Mounting Type | Height Above Board [z] | Height Above Board [z] | Termination | Features | Flat Flex Type | Number of Positions | Pitch | Pitch | Connector/Contact Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Flash | 20 | White | 0.5 A | Black | Gold | Tapered | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 mm | 0.039 " | Solder | Solder Retention | FFC FPC | 24 | 0.02 " | 0.5 mm | Contacts Top and Bottom | UL94 V-0 |
Oupiin | Flash | 20 | White | 0.5 A | Black | Gold | Tapered | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 mm | 0.039 " | Solder | Solder Retention | FFC FPC | 10 | 0.02 " | 0.5 mm | Contacts Top and Bottom | UL94 V-0 |
Oupiin | Flash | 20 | White | 0.5 A | Black | Gold | Tapered | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 mm | 0.039 " | Solder | Solder Retention | FFC FPC | 0.02 " | 0.5 mm | Contacts Top and Bottom | UL94 V-0 | |
Oupiin | Flash | 20 | White | 0.5 A | Black | Gold | Tapered | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 mm | 0.039 " | Solder | Solder Retention | FFC FPC | 8 | 0.02 " | 0.5 mm | Contacts Top and Bottom | UL94 V-0 |
Oupiin | Flash | 20 | White | 0.5 A | Black | Gold | Tapered | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 mm | 0.039 " | Solder | Solder Retention | FFC FPC | 22 | 0.02 " | 0.5 mm | Contacts Top and Bottom | UL94 V-0 |
