0633-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

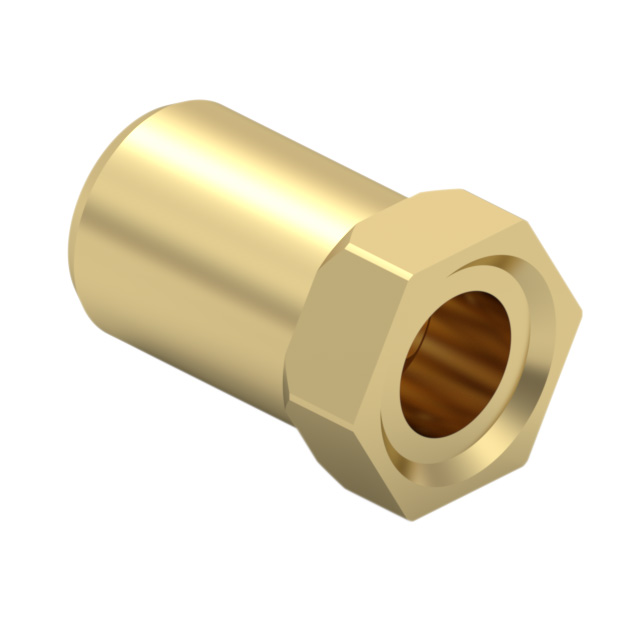

ZERO PROFILE RECEPTACLE FOR LEAD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | Beryllium Copper | 1.85 mm | 0.073 in | No Tail | 0.072 " | 1.83 mm | Gold | 0.51 mm | 0.02 in | 0.81 mm | 0.032 " | 0.047 in | 1.19 mm | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | 0.088 " | 2.24 mm |
