QLUX Series

Catalog

LED ENG QLUX WHT ROUND 3000K

Part	Type	Features	Size / Dimension [diameter]	Color	Lens Type	CRI (Color Rendering Index)	Configuration	Viewing Angle	Temperature - Test	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Height [z]	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	CCT (K) [Min]	CCT (K) [Max]	Height

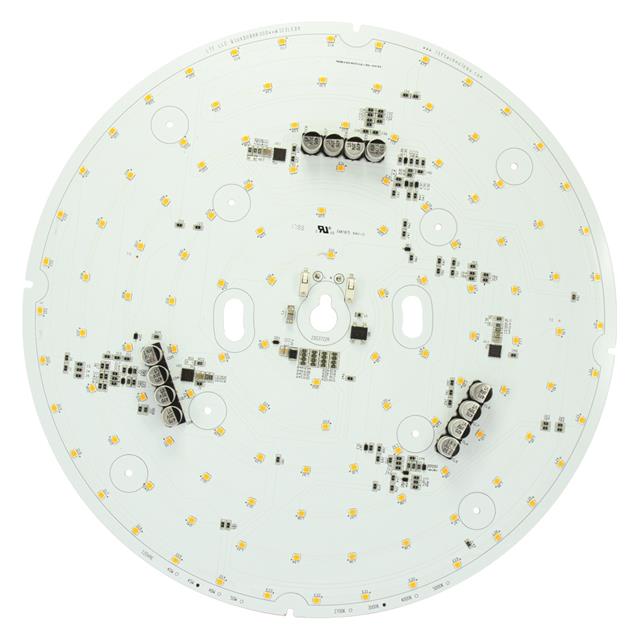

LTF technology LLC QLUXDOBAR30045W12930	LED Engine	Dimming-ELV Triac	300 mm	Neutral White	Flat	94	Round	160 °	25 °C	3-Step MacAdam Ellipse	3000 K	4174 lm	120 VAC	90 lm/W

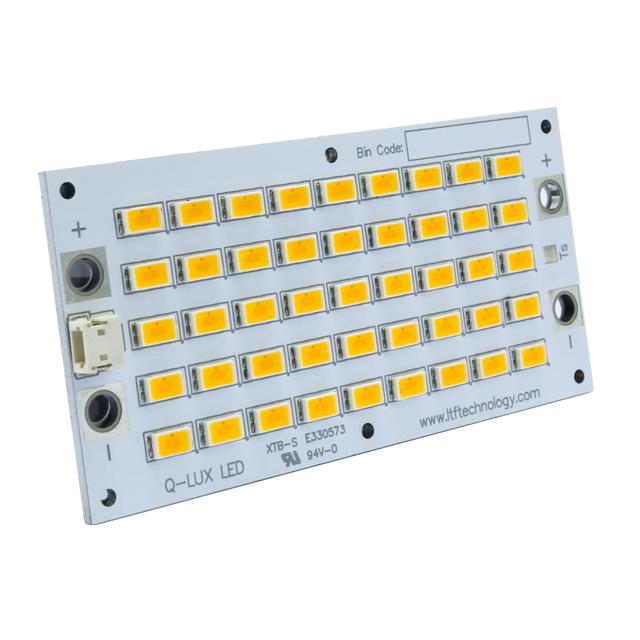

LTF technology LLC QLUX10W350C28V27K9CR	LED Engine	With Connector		Neutral White	Flat	90	Rectangle	160 °	25 °C	3-Step MacAdam Ellipse	2700 K	822 lm	28 V	83 lm/W	3.5 mm	350 mA	83.9 mm	41.95 mm	350 mA

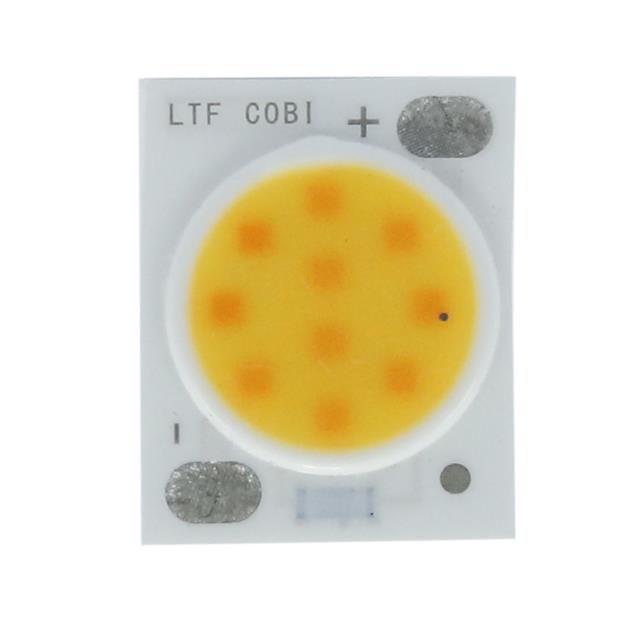

LTF technology LLC QLUXCOBI1512932WD-P1	Chip On Board (COB)	Dimming		Neutral White	Flat	98	Rectangle		25 °C	3-Step MacAdam Ellipse		1200 lm	34 V	82 lm/W	1.5 mm	350 mA	15 mm	12 mm	350 mA	1800 K	3000 K

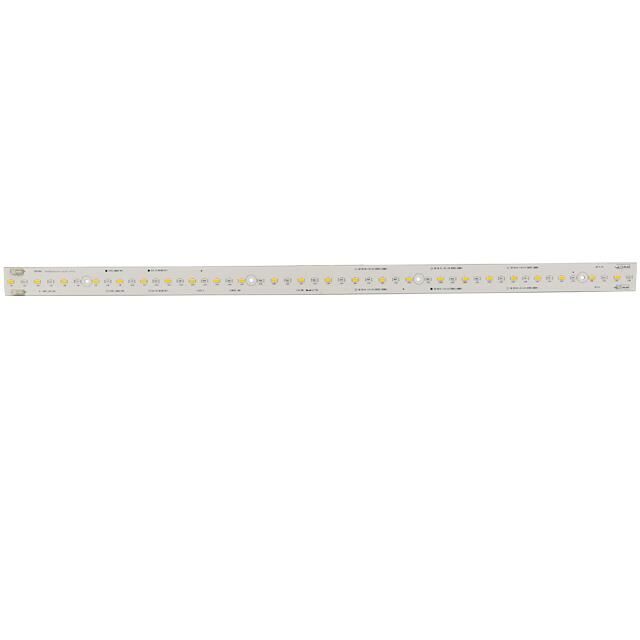

LTF technology LLC QLUXL57512W24LED840L	LED Engine	Dimming		Neutral White	Flat	80	Linear	120 °	50 °C	3-Step MacAdam Ellipse	4000 K	1250 lm		152 lm/W		450 mA	575 mm	1 "	350 mA

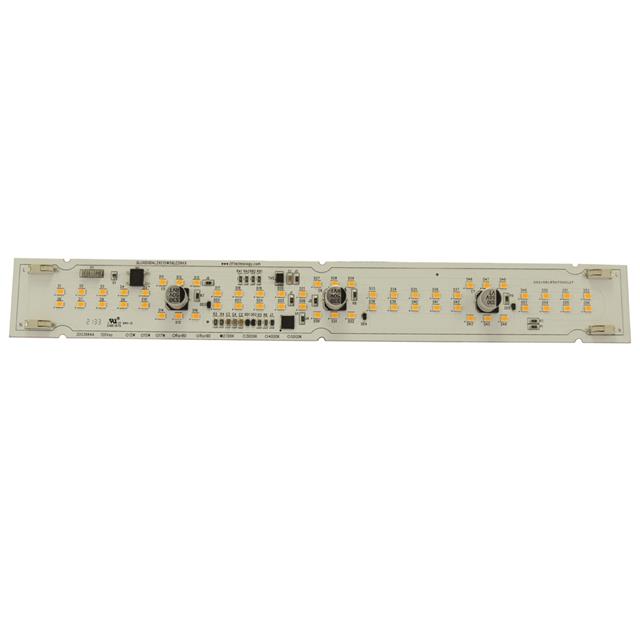

LTF technology LLC QLUXDOBAL29205W56927	LED Engine	Dimming-ELV Triac		Neutral White	Flat	92	Linear	160 °	25 °C	3-Step MacAdam Ellipse	2700 K	450 lm	120 VAC	93 lm/W			292 mm	38 mm

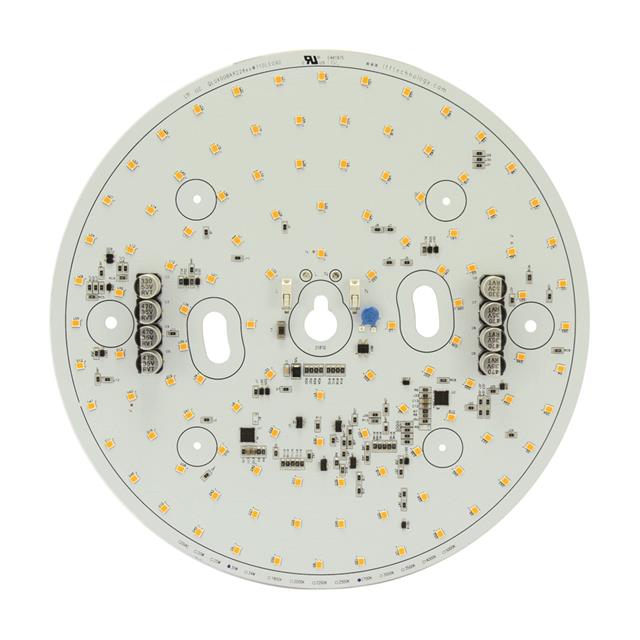

LTF technology LLC QLUXDOBAR22830W11927	LED Engine	Dimming-ELV Triac	228 mm	Neutral White	Flat	90	Round	160 °	25 °C	3-Step MacAdam Ellipse	2700 K		120 VAC	80 lm/W

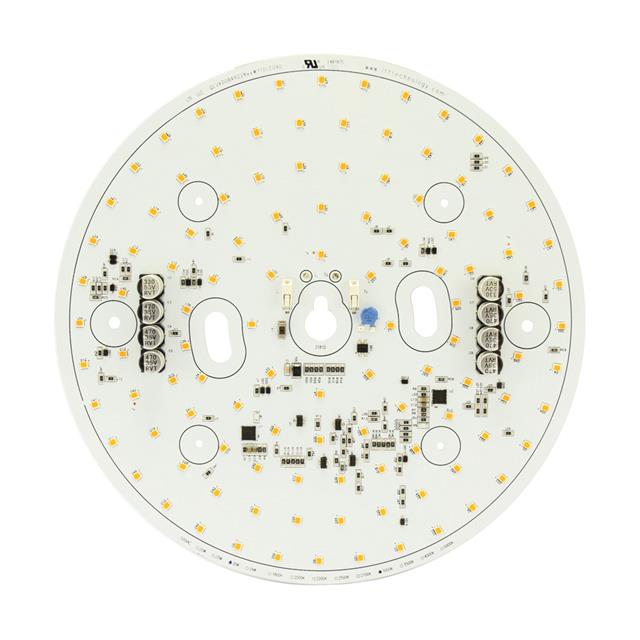

LTF technology LLC QLUXDOBAR22830W11930	LED Engine	Dimming-ELV Triac	228 mm	Neutral White	Flat	90	Round	160 °	25 °C	3-Step MacAdam Ellipse	3000 K	2600 lm	120 VAC	80 lm/W
LTF technology LLC QLUXCOBI181893016KWD	Chip On Board (COB)	Dimming		Neutral White	Flat	95	Square		25 °C			2170 lm	34 V	90 lm/W	1 mm	700 mA	18 mm	18 mm		1800 K	3000 K
LTF technology LLC QLUXDOBAL59925W84930	LED Engine	Dimming-ELV Triac		Neutral White	Flat	93	Linear	160 °	25 °C	3-Step MacAdam Ellipse	3000 K	2200 lm	120 VAC	94 lm/W			599 mm	38 mm				13 mm

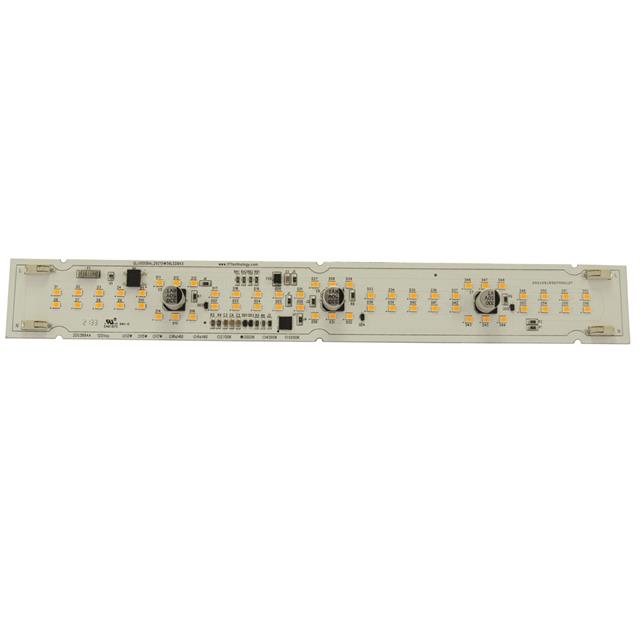

LTF technology LLC QLUXDOBAL29205W56930	LED Engine	Dimming-ELV Triac		Neutral White	Flat	92	Linear	160 °	25 °C	3-Step MacAdam Ellipse	3000 K	500 lm	120 VAC	93 lm/W			292 mm	38 mm
