146458 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HDR 2POS 0.1 STACK T/H

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Mounting Type	Termination	Number of Rows	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin	Length - Overall Pin	Length - Tail	Length - Tail
TE Connectivity Raychem Cable Protection 146458-2	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	2	Through Hole	Solder	1	Tin-Lead	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 3-146458-0	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	30	Through Hole	Solder	1	Tin-Lead	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 5-146458-6	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	6	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 7-146458-7	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	27	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 2-146458-7	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	27	Through Hole	Solder	1	Tin-Lead	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in

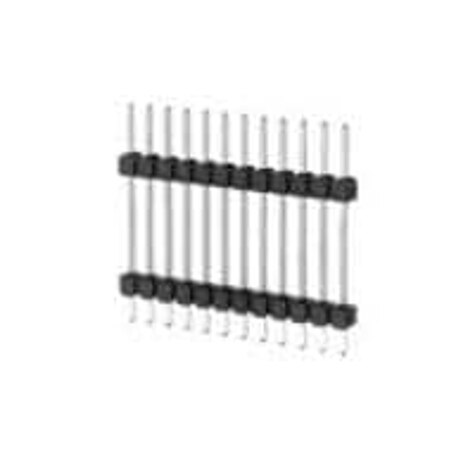

TE Connectivity Raychem Cable Protection 6-146458-0	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	10	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 8-146458-7	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	37	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 5-146458-7	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	7	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 146458-7	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	7	Through Hole	Solder	1	Tin-Lead	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
TE Connectivity Raychem Cable Protection 7-146458-1	2.54 mm	0.1 in	2.54 Ám	100 Áin	Black	0.3 in	7.62 mm	21	Through Hole	Solder	1	Tin	3.124 mm	0.123 in	0.533 in	13.538 mm	2.8 mm	0.11 in
