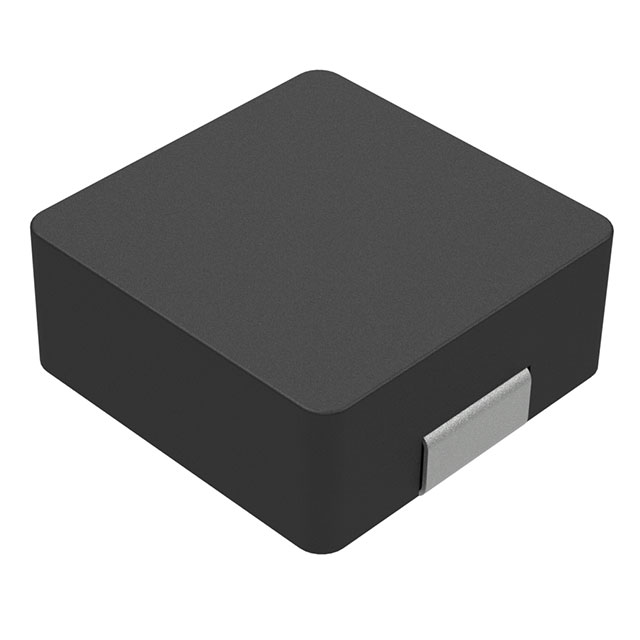

MWLA1235S Series
Manufacturer: Shenzhen Sunlord Electronics Co., Ltd.
Beta
⌘K
FIXED IND 3.3UH 12MOHM 27000MA
| Part | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Package / Case | Tolerance | Current Rating (Amps) | Material - Core | Inductance | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Shenzhen Sunlord Electronics Co., Ltd. | Surface Mount | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | Shielded | Nonstandard | 20 % | 12 Amps | Carbonyl Powder | 3.3 µH | Drum Core Wirewound | 0.138 " | 3.5 mm | 100 kHz | 12 mOhm | 27 A | -55 C | 125 °C |
