G4W-221 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE DPST 10A 24V

Part	Coil Current	Must Release Voltage	Coil Resistance	Must Operate Voltage	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Mounting Type	Contact Material	Operate Time	Relay Type	Coil Voltage	Approval Agency	Termination Style	Switching Voltage	Coil Type	Load - Max Switching	Contact Form
Omron Electronics Inc-EMC Div G4W-2214P-US-T130 DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)

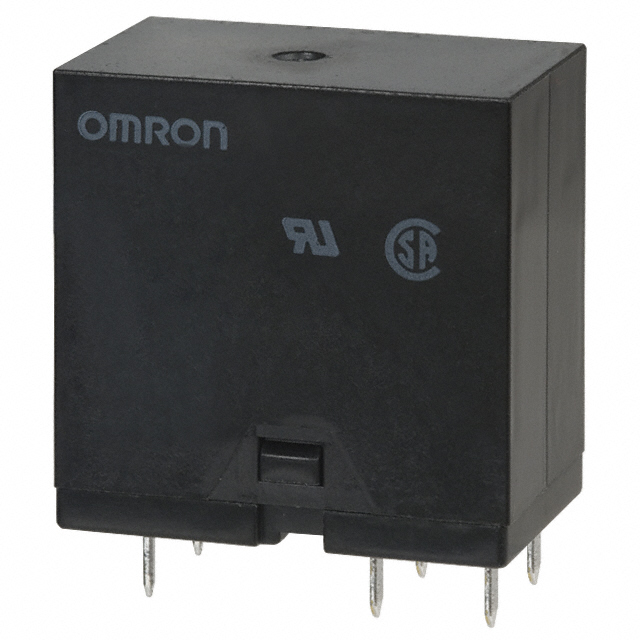

Omron Electronics Inc-EMC Div G4W-2212P-US-TV5-HP-DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W-2214P-US-TV5 DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W-2212P-US-TV5-HP-DC100		10 VDC	12.5 kOhms	80 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	100 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W2212PUSTV5DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Cadmium Free Silver Alloy	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W-2214P-US-HP DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W-2212P-VD-TV5-HP DC24	33.3 mA	2.4 VDC	720 Ohms	19.2 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	24 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
Omron Electronics Inc-EMC Div G4W-2212P-US-TV5-HP DC12	66.7 mA	1.2 VDC	180 Ohms	9.6 VDC	5 ms	55 °C	-25 °C	10 A	Through Hole	Silver Cadmium Oxide (AgCdO)	20 ms	General Purpose	12 VDC	CSA TUV UR VDE	PC Pin	125 VDC 250 VAC	Non Latching	1875 W 3750 VA	DPST-NO (2 Form A)
