68692 Series

Catalog

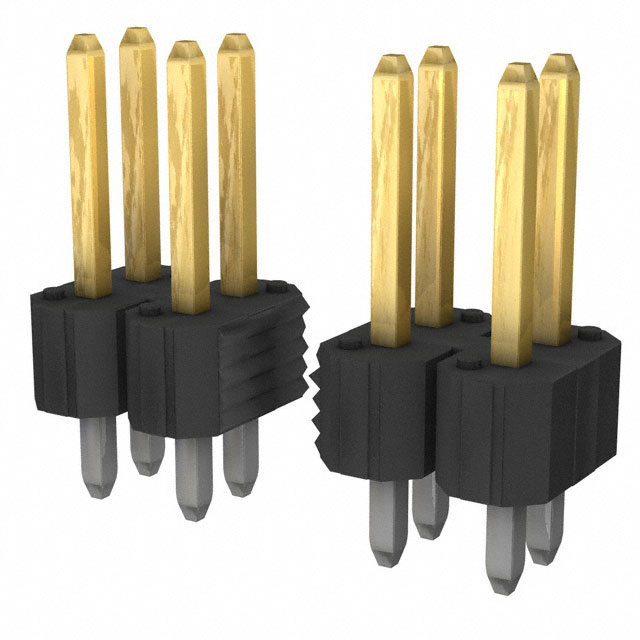

BERGSTIK II .100CC DR ST RAIGHT

Part	Insulation Color	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Contact Shape	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Termination	Fastening Type	Contact Material	Number of Rows	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions	Insulation Height	Insulation Height	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating
Amphenol ICC (FCI) 68692-464HLF	Black	2.54 mm	0.1 in	Header	Tin	-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	2.54 çm	100 çin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	64	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A
Amphenol ICC (FCI) 68692-124HLF	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.76 Ám	30 Áin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	24	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™
Amphenol ICC (FCI) 68692-672H	Black	2.54 mm	0.1 in	Header				0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.76 Ám	30 Áin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	72	0.1 in	2.54 mm	Through Hole	UL94 V-0		Gold or Gold GXT™

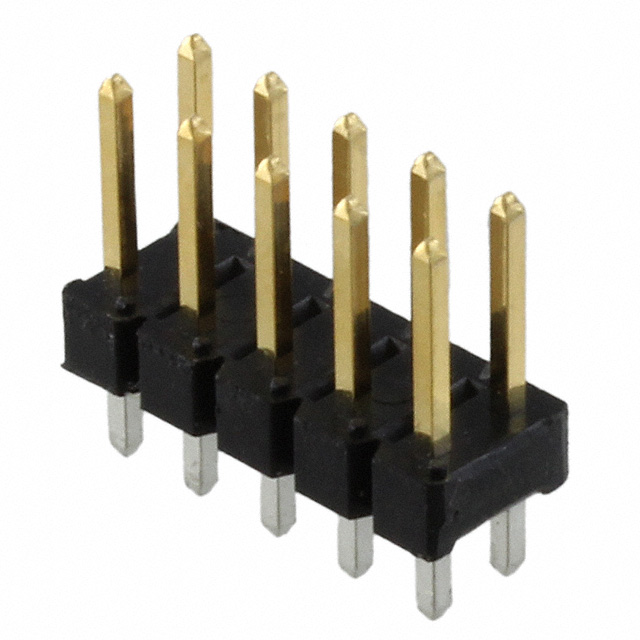

Amphenol ICC (FCI) 68692-210HLF	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.38 µm	15 µin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	10	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™
Amphenol ICC (FCI) 68692-420HLF	Black	2.54 mm	0.1 in	Header	Tin	-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	2.54 çm	100 çin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	20	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A

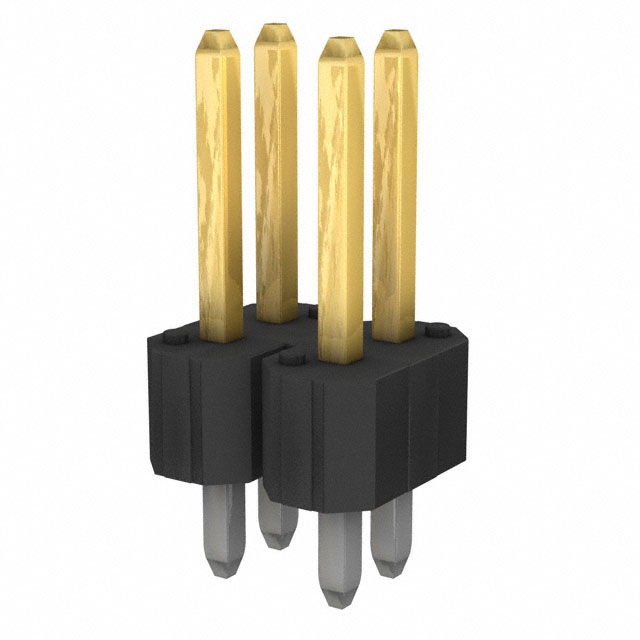

Amphenol ICC (FCI) 68692-104HLF	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.76 Ám	30 Áin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	4	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™

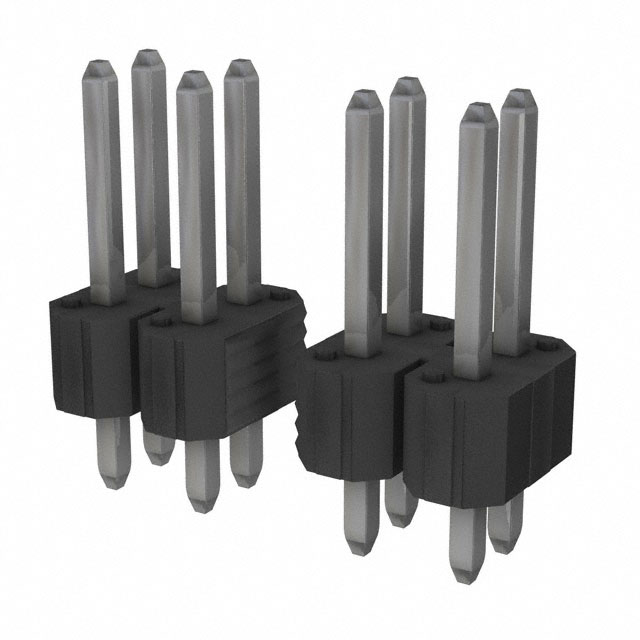

Amphenol ICC (FCI) 68692-450HLF	Black	2.54 mm	0.1 in	Header	Tin	-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	2.54 çm	100 çin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	50	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A
Amphenol ICC (FCI) 68692-122HLF	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.76 Ám	30 Áin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	22 positions	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™
Amphenol ICC (FCI) 68692-142HLF	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.76 Ám	30 Áin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	42	0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™
Amphenol ICC (FCI) 68692-205	Black	2.54 mm	0.1 in	Header		-65 ░C	130 °C	0.23 in	5.84 mm	All	Square	Male Pin	2.54 mm	0.1 in	0.38 µm	15 µin	0.43 in	10.92 mm	Solder	Push-Pull	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded		0.1 in	2.54 mm	Through Hole	UL94 V-0	3 A	Gold or Gold GXT™
