BLP9 Series

Catalog

RF MOSFET LDMOS 13.6V TO270

Part	Current Rating (Amps)	Configuration	Voltage - Test	Package / Case	Mounting Type	Frequency	Current - Test	Voltage - Rated	Power - Output	Supplier Device Package	Gain	Frequency [Max]	Frequency [Min]	Technology
Ampleon USA Inc. BLP9LA25SGXY	1.4 µA	N-Channel	13.6 V	TO-270BA	Surface Mount	941 MHz	500 mA	40 V	25 W	TO-270-2G-1	18.4 dB

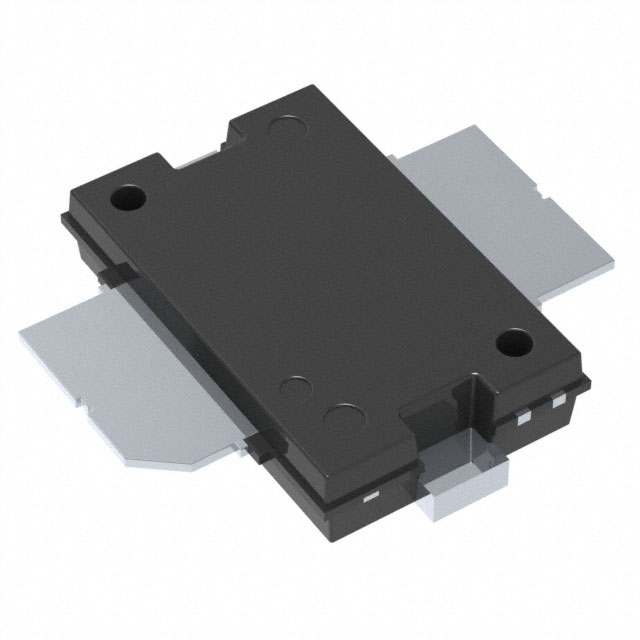

Ampleon USA Inc. BLP9G0722-20Z	1.4 µA		28 V	SOT-1482-1	Surface Mount			65 V	43 dBm	SOT-1482-1	19 dB	2700 MHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTZ	2.8 µA	2 N-Channel (Dual) Common Source	50 V	OMP-1230-6F-1	Surface Mount		1.4 A	105 V	850 W	OMP-1230-6F-1	17.8 dBi	960 MHz	617 MHz	LDMOS (Dual) Common Source

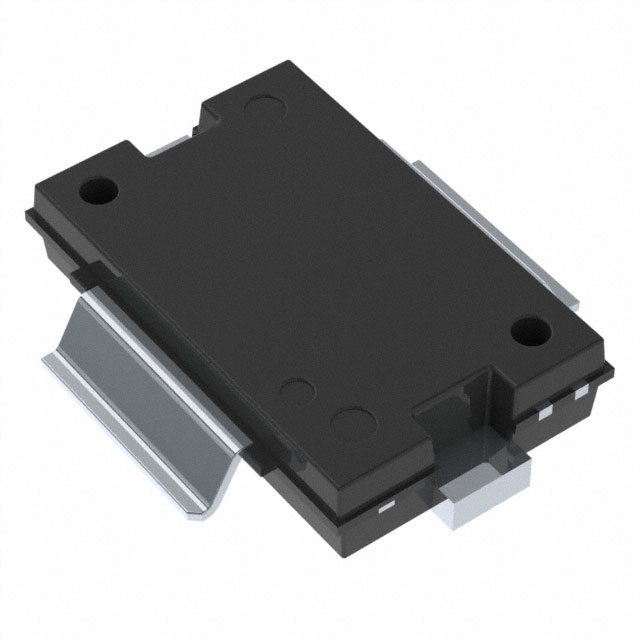

Ampleon USA Inc. BLP9H10-30GZ				SOT-1483-1	Surface Mount					SOT1483-1
Ampleon USA Inc. BLP9LA25SXY	1.4 µA	N-Channel	13.6 V	TO-270AA	Surface Mount	941 MHz	500 mA	40 V	25 W	TO-270-2F-1	18.4 dB

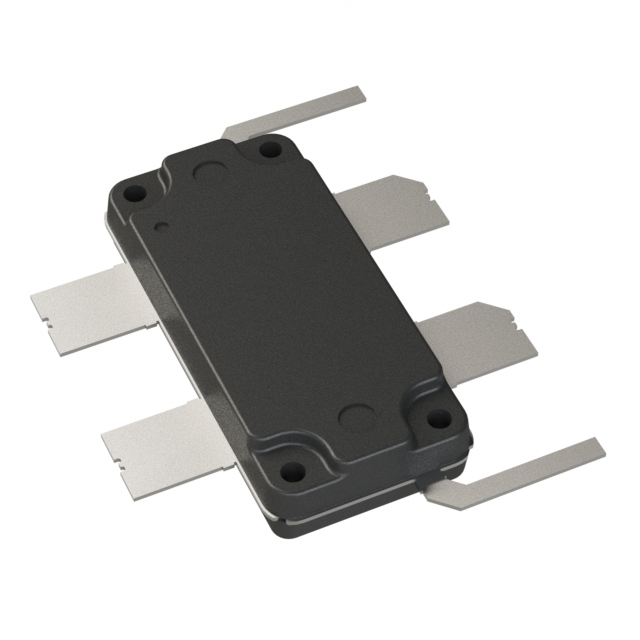

Ampleon USA Inc. BLP9H10S-500AWTY	1.4 µA	Dual	300 mV	OMP-780-6F-1	Surface Mount		500 mA	105 V	500 W	OMP-780-6F-1	18.3 dB	960 MHz	600 MHz
Ampleon USA Inc. BLP9G0722-20GZ	1.4 µA		28 V	SOT-1483-1	Surface Mount			65 V	43 dBm	SOT1483-1	19 dB	2700 MHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTY	2.8 µA	Common Source Dual	50 V	OMP-1230-6F-1			1.4 A	105 V	850 W	OMP-1230-6F-1	17.8 dBi	960 MHz	617 MHz
