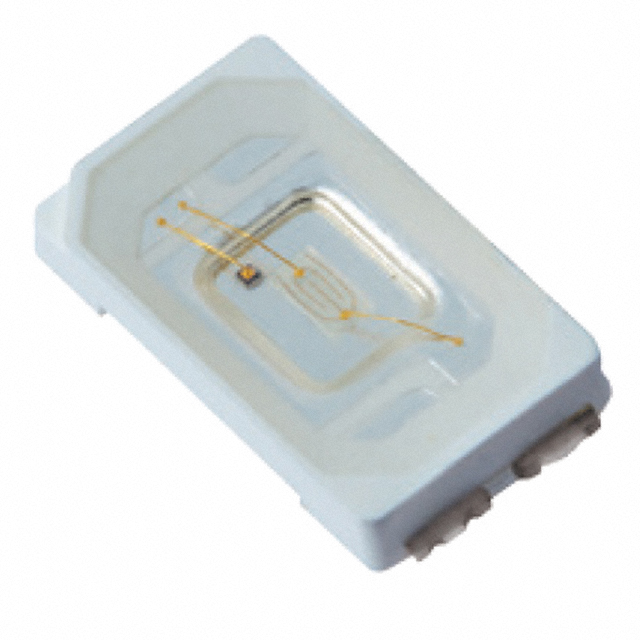

XZMYLA143 Series
Manufacturer: SunLED
Beta
⌘K
LED YELLOW 590NM SMD
| Part | Thermal Resistance of Package | Mounting Type | Viewing Angle | Supplier Device Package | Temperature - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Lumens/Watt @ Current - Test | Color | Current - Test | Voltage - Forward (Vf) (Typ) | Wavelength | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 70 °C/W | Surface Mount | 120 ° | SMD | 25 °C | 5.3 mm | 0.209 " | 0.118 in | 3 mm | Nonstandard SMD | 37 lm/W | Yellow | 150 mA | 2.7 V | 590 nm | 1.02 mm | 0.04 in |
