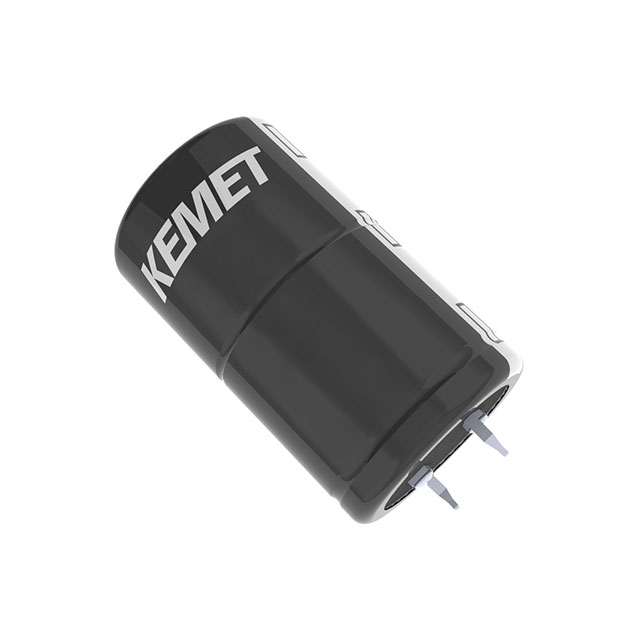

ALA8DA Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, 560 ΜF, 400 V, ± 20%, SNAP-IN, 8000 HOURS @ 105°C

Part	Polarization	Ratings	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Ripple Current @ Low Frequency	Applications	Ripple Current @ High Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Impedance	Lifetime @ Temp.	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing
KEMET ALA8DA561DE400	Polar	AEC-Q200	20 %	-40 C	105 ░C	560 µF	Radial Can - Snap-In	2.09 A	Automotive	3.95 A	Through Hole	1.85 in	47 mm	275.2 mOhm	1.378 "	35 mm	400 V	485.4 mOhms	8000 Hrs
KEMET ALA8DA431CE400	Polar	AEC-Q200	20 %	-40 C	105 ░C	430 µF	Radial Can - Snap-In	2.84 A	Automotive	5.82 A	Through Hole	1.85 in	47 mm	352.6 mOhm	1.181 "		400 V	1.628 Ohms	8000 Hrs	30 mm
KEMET ALA8DA201CC500	Polar	AEC-Q200	20 %	-40 C	105 ░C		Radial Can - Snap-In	1.79 A	Automotive	3.92 A	Through Hole			1.031 Ohm	1.181 "		500 V	299 mOhms	7000 Hrs	30 mm	37 mm	1.457 in
KEMET ALA8DA241CC450	Polar	AEC-Q200	20 %	-40 C	105 ░C	240 µF	Radial Can - Snap-In	2.03 A	Automotive	4.42 A	Through Hole			566.4 mOhm	1.181 "		450 V	250.4 mOhms	7000 Hrs	30 mm	37 mm	1.457 in
KEMET ALA8DA431CF450	Polar	AEC-Q200	20 %	-40 C	105 ░C	430 µF	Radial Can - Snap-In	3.2 A	Automotive	6.45 A	Through Hole	2.047 in	52 mm	318.2 mOhm	1.181 "		450 V	136 mOhms	8000 Hrs	30 mm
KEMET ALA8DA241CD500	Polar	AEC-Q200	20 %	-40 C	105 ░C	240 µF	Radial Can - Snap-In	2.19 A	Automotive	4.76 A	Through Hole			859.2 mOhm	1.181 "		500 V	211.6 mOhms	7000 Hrs	30 mm		1.654 in	42 mm
KEMET ALA8DA301DD500	Polar	AEC-Q200	20 %	-40 C	105 ░C	300 µF	Radial Can - Snap-In	1.52 A	Automotive	2.97 A	Through Hole			691.6 mOhm	1.378 "	35 mm	500 V	780.2 mOhms	7000 Hrs			1.654 in	42 mm
KEMET ALA8DA391DC400	Polar	AEC-Q200	20 %	-40 C	105 ░C	390 µF	Radial Can - Snap-In	2.5 A	Automotive	5.18 A	Through Hole			394 mOhm	1.378 "	35 mm	400 V	196.8 mOhms	8000 Hrs		37 mm	1.457 in
KEMET ALA8DA561EF500	Polar	AEC-Q200	20 %	-40 C	105 ░C	560 µF	Radial Can - Snap-In	3.3 A	Automotive	7 A	Through Hole	2.047 in	52 mm	360 mOhm	1.575 in	40 mm	500 V	263 mOhms	9000 Hrs					0.394 in	10 mm
KEMET ALA8DA431DF500	Polar	AEC-Q200	20 %	-40 C	105 ░C	430 µF	Radial Can - Snap-In	2.7 A	Automotive	6.1 A	Through Hole	2.047 in	52 mm	484 mOhm	1.378 "	35 mm	500 V	358 mOhms	8000 Hrs					0.394 in	10 mm
