M4692 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

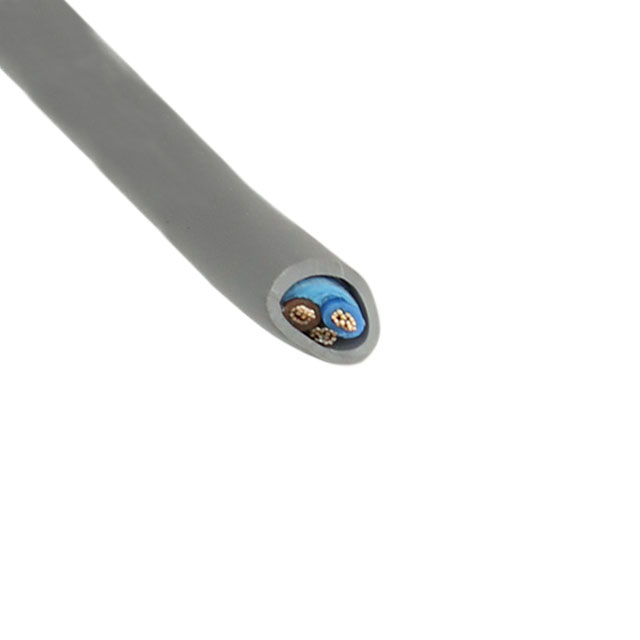

CABLE 2COND 18AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Number of Conductors | Features | Conductor Material | Conductor Insulation | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Voltage | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 2 | Drain Wire Rip Cord | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | Multi-Conductor | UL Style 2464 | 16 | 30 AWG | 0.229 in | 5.82 mm | 18 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Foil | 80 °C | -20 ░C | Slate | ||
 ALPHA WIRE | 100 % | Aluminum | 2 | Drain Wire Rip Cord | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Multi-Conductor | UL Style 2464 | 16 | 30 AWG | 0.229 in | 5.82 mm | 18 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Foil | 80 °C | -20 ░C | Slate | 100 ft | 30.5 m |
