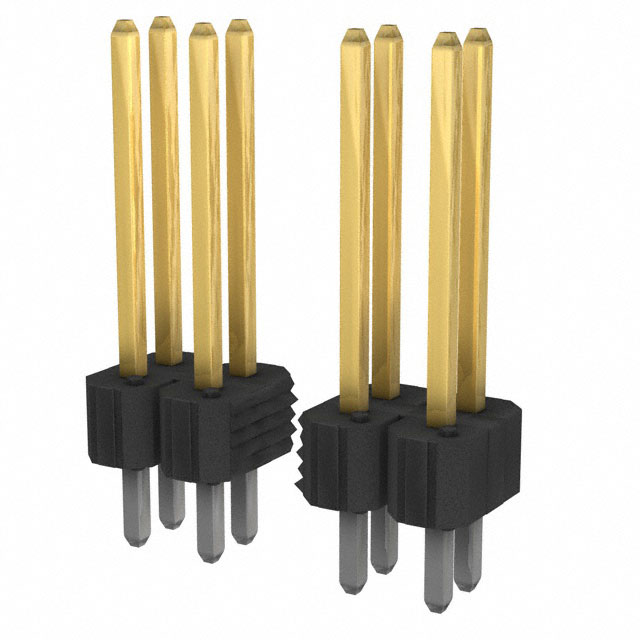

68464 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Shape	Number of Positions	Connector Type	Mounting Type	Termination	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Color	Number of Rows	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Material	Contact Finish - Post	Number of Positions
Amphenol ICC (FCI) 68464-272H	Square	72	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	15 µin	0.38 µm	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
Amphenol ICC (FCI) 68464-172HLF	Square	72	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	30 Áin	0.76 Ám	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
Amphenol ICC (FCI) 68464-470HLF	Square	70	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	100 çin	2.54 çm	-65 ░C	130 °C		Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze	Tin
Amphenol ICC (FCI) 68464-130HLF	Square	30	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	30 Áin	0.76 Ám	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
Amphenol ICC (FCI) 68464-170HLF	Square	70	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	30 Áin	0.76 Ám	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
Amphenol ICC (FCI) 68464-416HLF	Square		Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	100 çin	2.54 çm	-65 ░C	130 °C		Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze	Tin	16
Amphenol ICC (FCI) 68464-110HLF	Square	10	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	30 Áin	0.76 Ám	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
Amphenol ICC (FCI) 68464-426HLF	Square	26	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	100 çin	2.54 çm	-65 ░C	130 °C		Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze	Tin
Amphenol ICC (FCI) 68464-436HLF	Square	36	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	100 çin	2.54 çm	-65 ░C	130 °C		Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze	Tin
Amphenol ICC (FCI) 68464-144HLF	Square	44	Header	Through Hole	Solder	Push-Pull	UL94 V-0	0.1 in	2.54 mm	30 Áin	0.76 Ám	-65 ░C	130 °C	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	10.92 mm	0.43 in	Male Pin	Black	2	16.51 mm	0.65 in	2.54 mm	0.1 in	All	0.12 in	3.05 mm	3 A	Phosphor Bronze
