BC857 Series

Manufacturer: Micro Commercial Components

Catalog

TRANS PNP 45V 0.1A SOT23

Part	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Mounting Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Qualification	Grade
Micro Commercial Components BC857C-TP	650 mV	45 V	PNP	420	310 mW	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	200 MHz	100 mA	Surface Mount	SOT-23	15 nA
Micro Commercial Components BC857BS-TP	650 mV	45 V	2 PNP (Dual)		300 mW	-55 °C	150 °C	6-TSSOP SC-88 SOT-363	200 MHz	200 mA	Surface Mount	SOT-363	15 nA	220 hFE

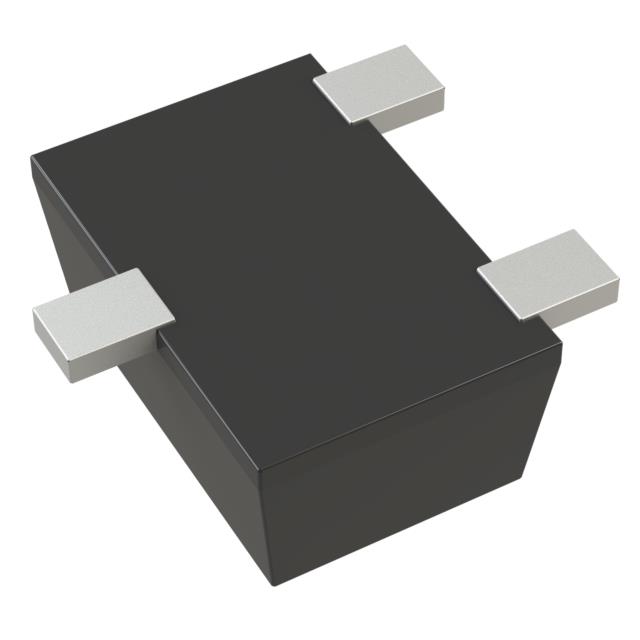

Micro Commercial Components BC857CM3-TP	650 mV		PNP	420	265 mW	-55 °C	150 °C	SOT-723	100 MHz	100 mA	Surface Mount	SOT-723	1 mA		50 V
Micro Commercial Components BC857B-13P	650 mV	45 V	PNP		310 mW	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	200 MHz	100 mA	Surface Mount	SOT-23	15 nA	220 hFE
Micro Commercial Components BC857BW-TP	650 mV	45 V	PNP		150 mW	-65 °C	150 °C	SC-70 SOT-323	100 MHz	100 mA	Surface Mount	SOT-323	15 nA	220 hFE
Micro Commercial Components BC857BWHE3-TP	650 mV	45 V	PNP		150 mW	-65 °C	150 °C	SC-70 SOT-323	100 MHz	100 mA	Surface Mount	SOT-323	100 nA	220 hFE		AEC-Q101	Automotive
Micro Commercial Components BC857CHE3-TP	650 mV	45 V	PNP	420	310 mW	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	200 MHz	100 mA	Surface Mount	SOT-23	15 nA			AEC-Q101	Automotive
Micro Commercial Components BC857BT-TP	650 mV	45 V	PNP		150 mW	-55 °C	150 °C	SOT-523	100 MHz	100 mA	Surface Mount	SOT-523	15 nA	220 hFE
Micro Commercial Components BC857CW-TP	650 mV	45 V	PNP	420	150 mW	-65 °C	150 °C	SC-70 SOT-323	100 MHz	100 mA	Surface Mount	SOT-323	15 nA
Micro Commercial Components BC857AW-TP	650 mV	45 V	PNP		150 mW	-65 °C	150 °C	SC-70 SOT-323	100 MHz	100 mA	Surface Mount	SOT-323	15 nA	125 hFE
