69192 Series

Catalog

CONN HEADER VERT 32POS 2.54MM

...

Part	Insulation Height	Insulation Height	Fastening Type	Termination	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Insulation Color	Mounting Type	Contact Material	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Shrouding	Contact Shape	Contact Finish - Mating	Number of Positions	Number of Positions

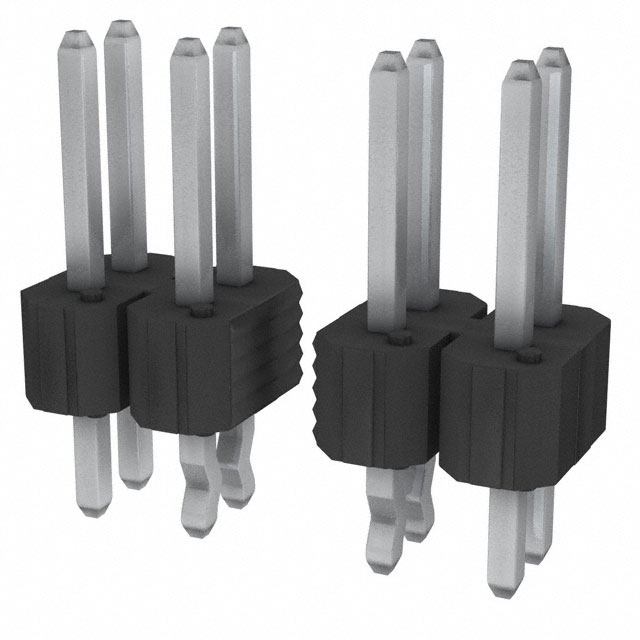

Amphenol ICC (FCI) 69192-432HLF	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm	-65 ░C	130 °C	3 A	0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	2.54 çm	100 çin	Male Pin	Tin	Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square

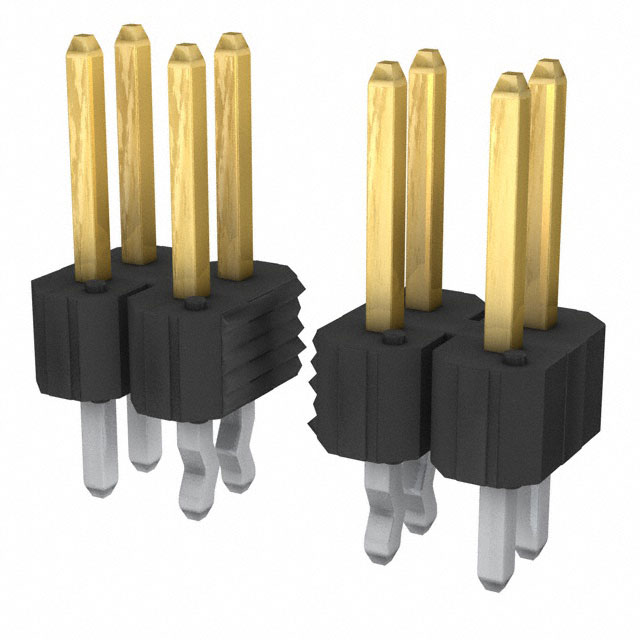

Amphenol ICC (FCI) 69192-216H	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm				0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.38 µm	15 µin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™	16
Amphenol ICC (FCI) 69192-528	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm				0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.38 µm	15 µin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		28
Amphenol ICC (FCI) 69192-120HLF	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm	-65 ░C	130 °C	3 A	0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.76 Ám	30 Áin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		20
Amphenol ICC (FCI) 69192-130	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm				0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.76 Ám	30 Áin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		30
Amphenol ICC (FCI) 69192-512	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm				0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.38 µm	15 µin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		12
Amphenol ICC (FCI) 69192-616H	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm	-65 ░C	130 °C	3 A	0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.76 Ám	30 Áin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™	16
Amphenol ICC (FCI) 69192-436HLF	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm	-65 ░C	130 °C	3 A	0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	2.54 çm	100 çin	Male Pin	Tin	Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square			36
Amphenol ICC (FCI) 69192-228HLF	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm	-65 ░C	130 °C	3 A	0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.38 µm	15 µin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		28
Amphenol ICC (FCI) 69192-624H	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	UL94 V-0	0.23 in	5.84 mm				0.45 "	11.43 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.76 Ám	30 Áin	Male Pin		Black	Through Hole	Phosphor Bronze	2	0.12 in	3.05 mm	Header	Unshrouded	Square	Gold or Gold GXT™		24
