172160 Series
Manufacturer: Molex
Beta
⌘K

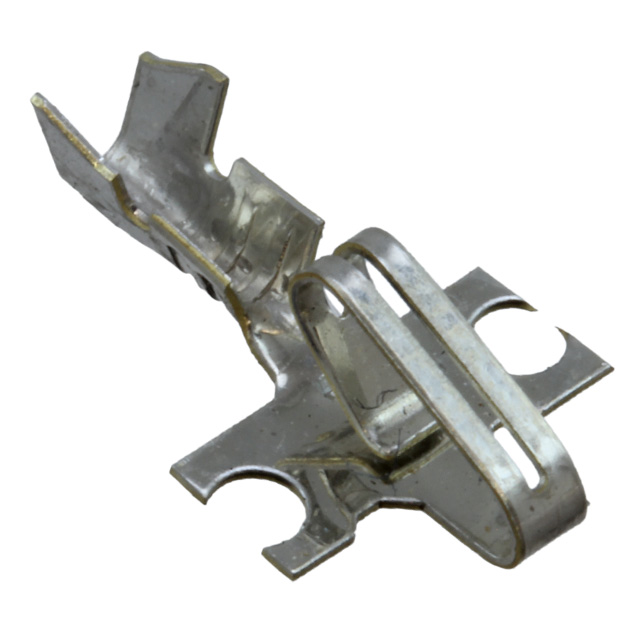

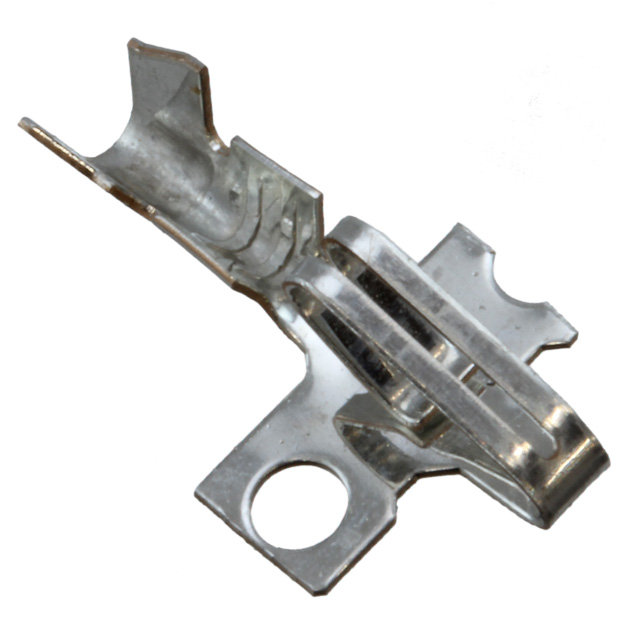

TERM EDGE EDGEMATE 18/20AWG
| Part | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Termination | Contact Material | Wire Gauge | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|
 Molex | Pin | 2.54 µm | 100 µin | Tin | Crimp | Phosphor Bronze | 18 AWG 20 AWG | ||
 Molex | Socket | 0.38 µm | 15 µin | Gold | Crimp | Phosphor Bronze | 18 AWG 20 AWG | ||
 Molex | Pin | 2.54 µm | 100 µin | Tin | Crimp | Brass | 18 AWG 20 AWG | ||
 Molex | Pin | 0.38 µm | 15 µin | Gold | Crimp | Brass | 17.5 AWG | 20 AWG |
