MAX1771 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC REG CTRLR BST/BUCK-BOOST
| Part | Duty Cycle (Max) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Output Phases | Topology | Frequency - Switching [Max] | Package / Case | Output Configuration | Supplier Device Package | Synchronous Rectifier | Clock Sync | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Output Type | Function | Mounting Type | Number of Outputs | Frequency - Switching | Package / Case | Package / Case | Package / Case [y] | Package / Case [x] | Voltage - Output | Main Purpose | Regulator Topology | Board Type | Supplied Contents | Utilized IC / Part | Current - Output | Voltage - Input | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated | 50 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 300 kHz | Die | Positive | Die | 70 °C | 0 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | |||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-DIP | Positive | 8-PDIP | 85 °C | -40 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Through Hole | 1 | 300 kHz | 0.3 in | 7.62 mm | |||||||||||||||
 Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-SOIC | Positive | 8-SOIC | 70 °C | 0 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | 300 kHz | 3.9 mm | 0.154 in | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-SOIC | Positive | 8-SOIC | 85 °C | -40 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | 300 kHz | 3.9 mm | 0.154 in | |||||||||||||||

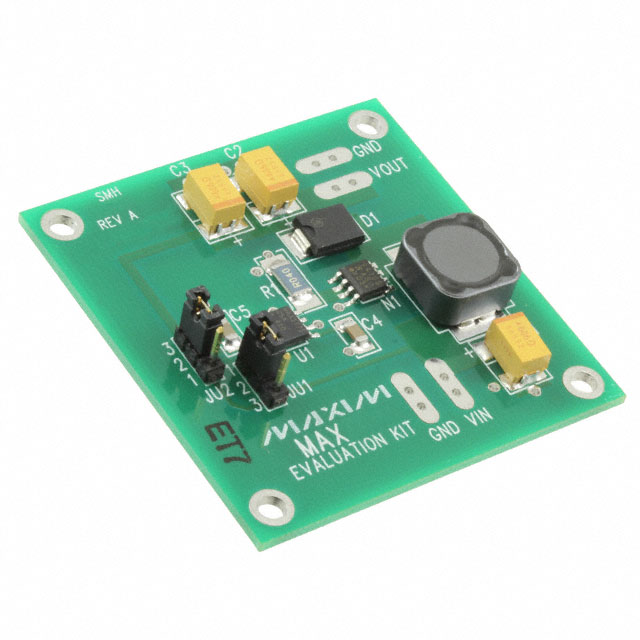

 Analog Devices Inc./Maxim Integrated | 300 kHz | 12 V | DC/DC Step Up | Boost | Fully Populated | Board(s) | MAX1771 | 500 mA | 5 VDC | Non-Isolated | 1 | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-DIP | Positive | 8-PDIP | 85 °C | -40 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Through Hole | 1 | 300 kHz | 0.3 in | 7.62 mm | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-SOIC | Positive | 8-SOIC | 70 °C | 0 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | 300 kHz | 3.9 mm | 0.154 in | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-SOIC | Positive | 8-SOIC | 70 °C | 0 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | 300 kHz | 3.9 mm | 0.154 in | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-SOIC | Positive | 8-SOIC | 85 °C | -40 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Surface Mount | 1 | 300 kHz | 3.9 mm | 0.154 in | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 92 % | 3 V | 16.5 V | 1 | Boost Buck-Boost | 8-DIP | Positive | 8-PDIP | 70 °C | 0 °C | Enable | Transistor Driver | Step-Up Step-Up/Step-Down | Through Hole | 1 | 300 kHz | 0.3 in | 7.62 mm |
