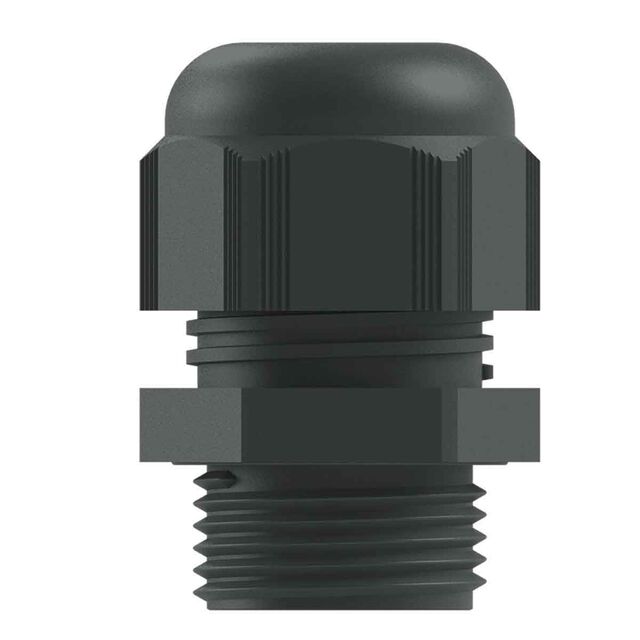

PNB-3 Series

Catalog

CABLE GLAND 5-10MM 3/8" NPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Thread Length	Thread Length	Ingress Protection	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]
SAB North America PNB-3/8	-20 ░C	100 °C	Cable Gland	0.591 in	15 mm	IP68 - Dust Tight Waterproof	17.2 mm	0.675 in	0.197 in	5 mm	10 mm	0.394 in	0.375 in NPT	Black
SAB North America PNB-3/4R	-20 ░C	100 °C	Cable Gland	0.591 in	15 mm	IP68 - Dust Tight Waterproof	26.7 mm	1.05 in	0.354 in	9 mm			0.75 "	Black	0.63 in	16 mm
SAB North America PNB-3/4	-20 ░C	100 °C	Cable Gland	0.591 in	15 mm	IP68 - Dust Tight Waterproof	26.7 mm	1.05 in			18.01 mm	0.709 in	0.75 "	Black			13 mm	0.512 in
SAB North America PNB-3/8R	-20 ░C	100 °C	Cable Gland	0.591 in	15 mm	IP68 - Dust Tight Waterproof	17.2 mm	0.675 in		0.118 in			0.375 in NPT	Black	0.276 in	7 mm			3 mm
