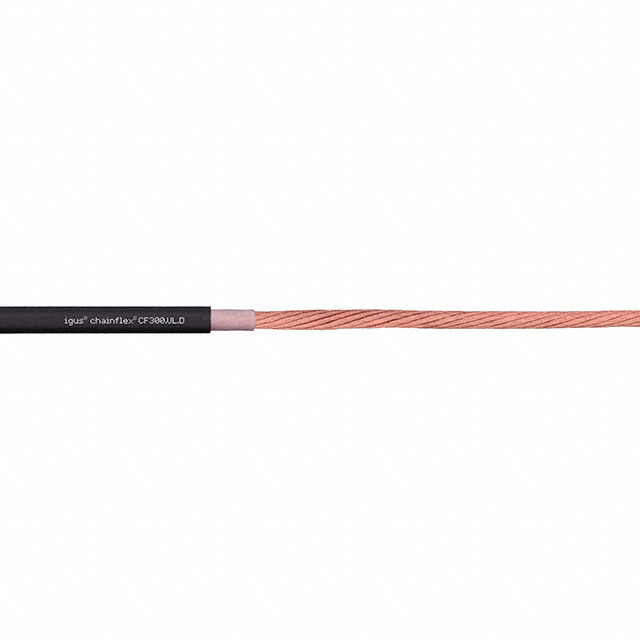

CF300 Series

Manufacturer: Igus

Catalog

TPE1C-4/0AWG HK UP WIRE 1KV FEET

Part	Spool Size	Spool Size	Cable Type	Conductor Material	Length	Features	Voltage	Wire Gauge	Ratings	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]
Igus CF300-UL-1200-01-D	1000 ft	304.8 m	Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	4 aught AWG	UL Style 21218	Black	Thermoplastic Elastomer (TPE)	21.5 mm	0.846 in	-35 °C	90 °C
Igus CF300-UL-1850-01-D			Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	350 MCM (kcmil)	UL Style 21218	Black	Thermoplastic Elastomer (TPE)	1.043 in		-35 °C	90 °C	26.5 mm

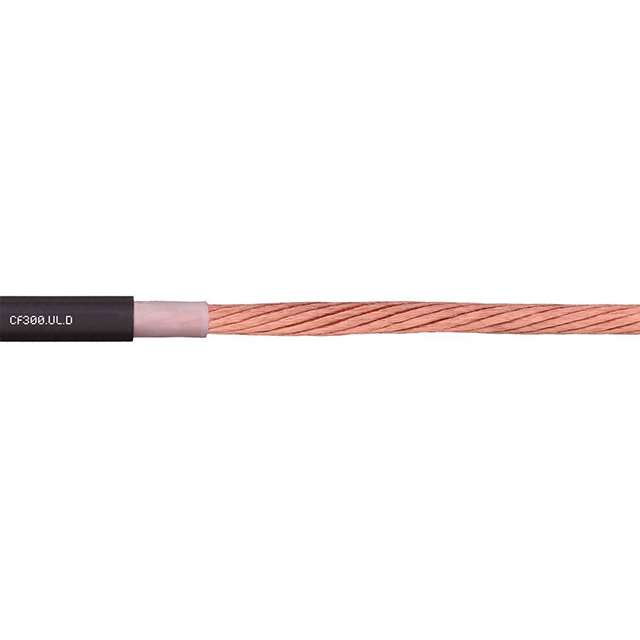

Igus CF300-UL-160-01-D	1000 ft	304.8 m	Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	6 AWG	UL Style 21218	Black	Thermoplastic Elastomer (TPE)	9.5 mm	0.374 in	-35 °C	90 °C
Igus CF300-UL-1500-01-D			Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	300 MCM (kcmil)	UL Style 21218	Black	Thermoplastic Elastomer (TPE)	23.5 mm	0.925 in	-35 °C	90 °C
Igus CF300-UL-950-01-D			Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V		UL Style 21218	Black	Thermoplastic Elastomer (TPE)	20 mm	0.787 in	-35 °C	90 °C
Igus CF300-UL-40-01-D	1000 ft	304.8 m	Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	12 AWG	UL Style 21218	Black	Thermoplastic Elastomer (TPE)	6.5 mm	0.256 in	-35 °C	90 °C
Igus CF300-UL-100-01-D	1000 ft	304.8 m	Hook-Up	Copper Bare	Enter Number of Feet in Order Quantity	Abrasion Resistant Oil Resistant UV Resistant	1000 V	8 AWG	UL Style 21218	Black	Thermoplastic Elastomer (TPE)			-35 °C	90 °C
