2350514 Series

Catalog

FIXED TERMINAL BLOCKS 3POS TB HDR 90 DEG, PITCH 3.5 & TL 3.5MM

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Header Orientation	Pitch [x]	Pitch [x]	Type	Number of Levels	Color	Mounting Type	Current - UL	Termination Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Contact Mating Finish	Voltage - UL	Number of Positions

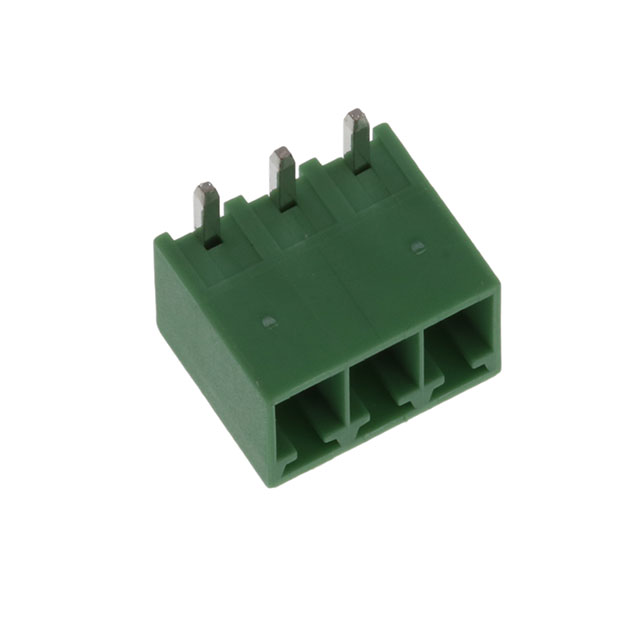

TE Connectivity Raychem Cable Protection 2350514-3	UL94 V-0	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	1	Green	Through Hole	12 A	Solder	Copper Alloy	-40 °C	105 ░C	3	Tin	150 V

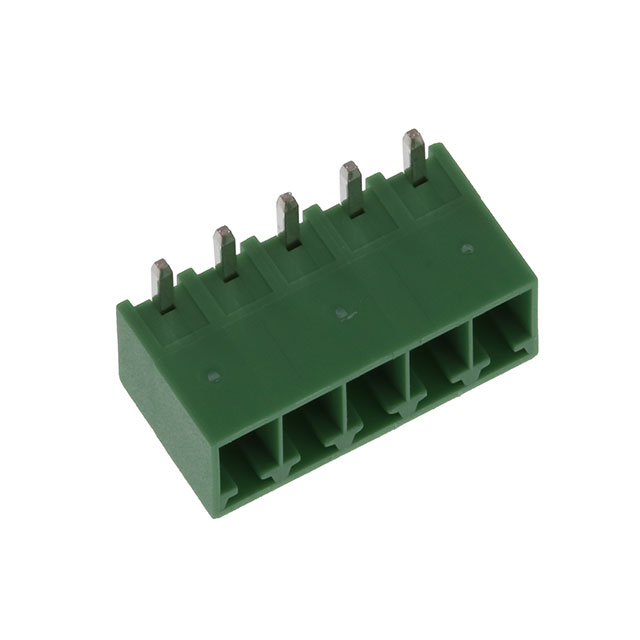

TE Connectivity Raychem Cable Protection 2350514-5	UL94 V-0	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	1	Green	Through Hole	12 A	Solder	Copper Alloy	-40 °C	105 ░C	5	Tin	150 V

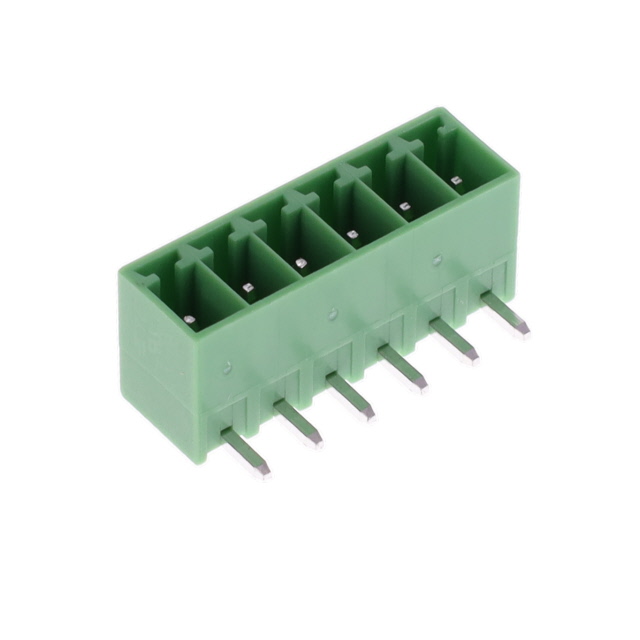

TE Connectivity Raychem Cable Protection 2350514-6	UL94 V-0	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	1	Green	Through Hole	12 A	Solder	Copper Alloy	-40 °C	105 ░C	6	Tin	150 V	6
TE Connectivity Raychem Cable Protection 2350514-4	UL94 V-0	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	1	Green	Through Hole	12 A	Solder	Copper Alloy	-40 °C	105 ░C	4	Tin	150 V	4
