1986799 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 4POS VERT 3.5MM
| Part | Voltage - UL | Features | Number of Levels | Positions Per Level | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Termination Style | Header Orientation | Mounting Type | Contact Mating Finish | Current - UL | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 300 V | Mating and Mounting Flange | 1 | 4 | 4 | Green | -40 °C | 110 °C | 3.5 mm | 0.138 in | Solder | Vertical | Through Hole | Tin | 13.5 A | Header Male Pins Shrouded (4 Side) |

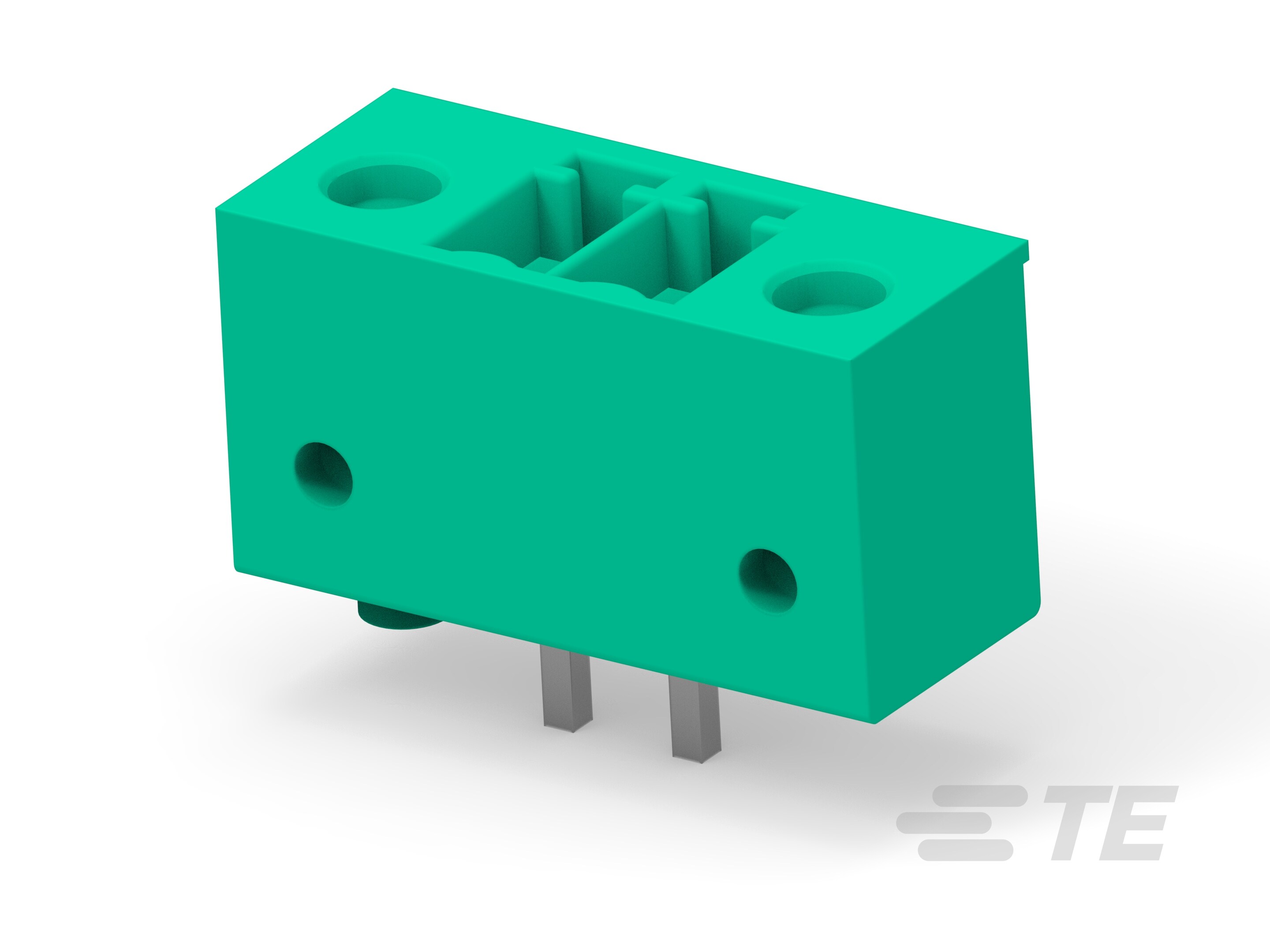

 TE Connectivity Raychem Cable Protection | 300 V | Mating and Mounting Flange | 1 | 2 | 2 | Green | -40 °C | 110 °C | 3.5 mm | 0.138 in | Solder | Vertical | Through Hole | Tin | 13.5 A | Header Male Pins Shrouded (4 Side) |
TE Connectivity Raychem Cable Protection | 300 V | Mating and Mounting Flange | 1 | 9 | 9 | Green | -40 °C | 110 °C | 3.5 mm | 0.138 in | Solder | Vertical | Through Hole | Tin | 13.5 A | Header Male Pins Shrouded (4 Side) |
TE Connectivity Raychem Cable Protection | 300 V | Mating and Mounting Flange | 1 | 6 | 6 | Green | -40 °C | 110 °C | 3.5 mm | 0.138 in | Solder | Vertical | Through Hole | Tin | 13.5 A | Header Male Pins Shrouded (4 Side) |
