NPPC211 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

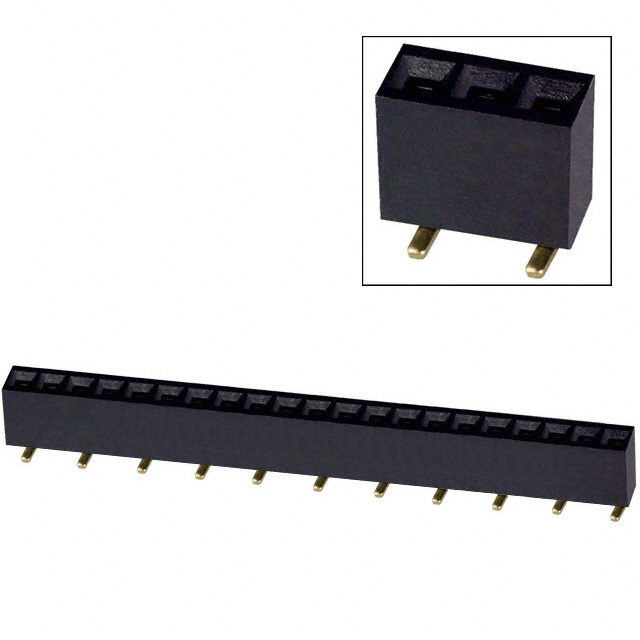

CONN HDR 21POS 0.1 GOLD SMD
| Part | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Contact Material | Insulation Color | Number of Positions | Contact Finish - Post | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Current Rating (Amps) | Number of Positions Loaded | Mounting Type | Number of Rows | Voltage Rating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Insulation Height | Insulation Height | Connector Type | Contact Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Flash | Phosphor Bronze | Black | 21 | Gold | Gold | -40 C | 105 ░C | Solder | 3 A | All | Surface Mount | 1 | 250 V | Flash | 0.1 " | 2.54 mm | UL94 V-0 | 0.28 in | 7.1 mm | Header Top or Bottom Entry | Female Socket | Push-Pull |
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Flash | Phosphor Bronze | 21 | Gold | Gold | -40 C | 105 ░C | Solder | 3 A | All | Surface Mount | 1 | 250 V | Flash | 0.1 " | 2.54 mm | UL94 V-0 | 0.28 in | 7.1 mm | Header Top or Bottom Entry | Female Socket | Push-Pull |
