5648 Series

Manufacturer: BRADY

Catalog

5648-HPHV CHILLED WTR SUPP/GRN/S

Part	Color	Material	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Label Type	Application Specifics	Material - Body	Width	Width	Color - Legend	Legend (Symbol Only)	Applications	Language	Features	Mounting Type	Arrangement	Print Type	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Legend (Text)	Shape	Length	Length	Location	Color - Background	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]
BRADY 5648-HPHV	Green Background White Legend	Polyester	101.6 mm	609.6 mm	4 "	24 in	Chilled Water Supply
BRADY 5648-I								Directionality	Plastic	8 in	203.2 mm	White	Directional Arrow	Pipe	63000 A 69000 A	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Snap On	Symbol and Text	Pre-Printed	1.5 in	38.1 mm	60.33 mm	2.375 in	Chilled Water Supply	Rectangle	9 in	228.6 mm	Outdoor	Green

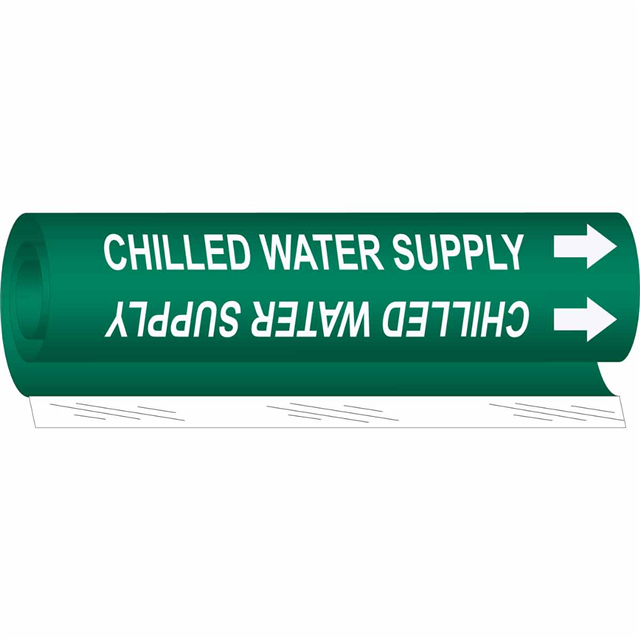

BRADY 5648-II								Water Fluids	Plastic	12 in	304.8 mm	White	Directional Arrow	General	63000 A 69000 A	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Snap On	Symbol and Text	Pre-Printed				7.875 in	Chilled Water Supply	Rectangle			Outdoor	Green	200.03 mm	63.5 mm	2.5 in	660.4 mm	26 in
BRADY 5648-O								Directionality	Plastic			White	Directional Arrow	Pipe	63000 A 69000 A	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Snap On	Symbol and Text	Pre-Printed			34.93 mm	1.375 in	Chilled Water Supply	Rectangle	8 in	203.2 mm	Outdoor	Green						127 mm	127 mm	0.5 in	12.7 mm
