LRA32H2F Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Approval Agency | Circuit | Mounting Type | Switch Function | Termination Style | Color - Actuator/Cap | Illumination Type, Color | Current Rating (Amps) | Actuator Marking | Illumination Voltage (Nominal) | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

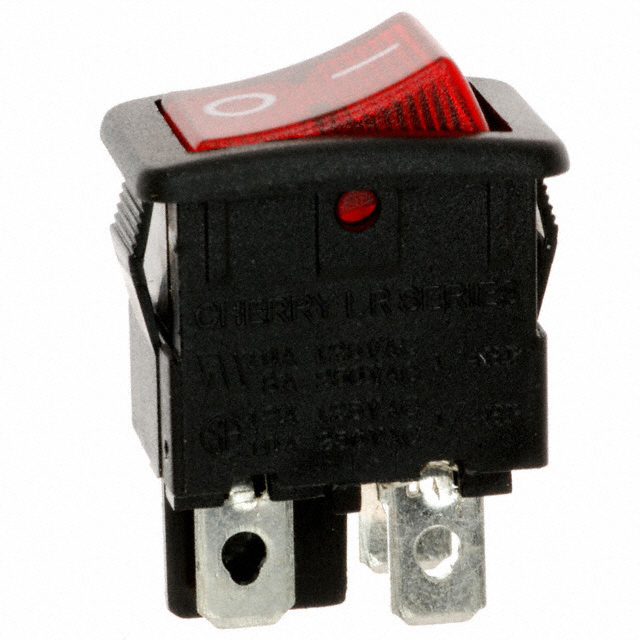

 ZF Electronics | 6000 Cycles | 100000 Cycles | 125 V | 12.9 mm | 19.1 mm | Concave (Curved) - Illuminated | CE cULus VDE | DPST | Panel Mount Snap-In | On-Off | Quick Connect | Red | Neon Red | 10 A | O - | 125 VAC | ||

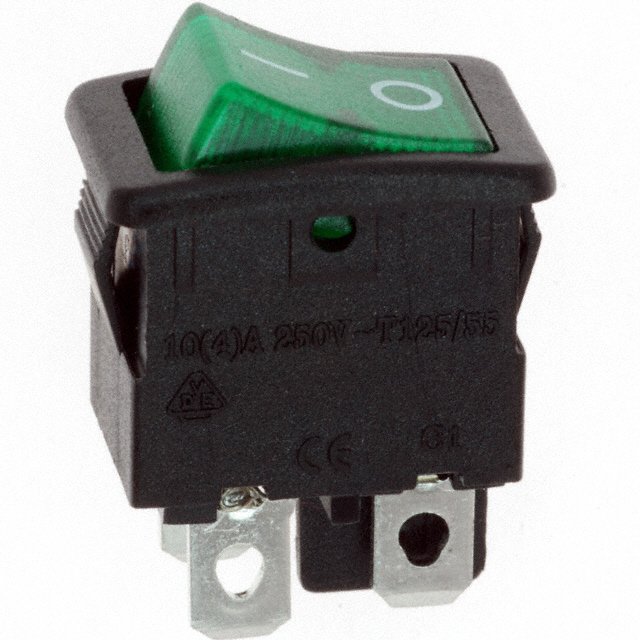

 ZF Electronics | 6000 Cycles | 100000 Cycles | 125 V | 12.9 mm | 19.1 mm | Concave (Curved) - Illuminated | CE cULus VDE | DPST | Panel Mount Snap-In | On-Off | Quick Connect | Green | 10 A | O - | 125 VAC | Neon | Green | |

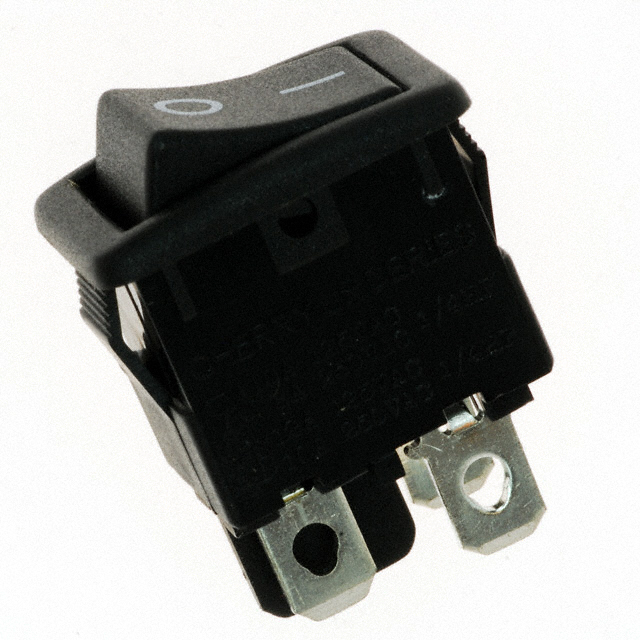

 ZF Electronics | 6000 Cycles | 100000 Cycles | 125 V | 12.9 mm | 19.1 mm | Concave (Curved) | CE cULus VDE | DPST | Panel Mount Snap-In | On-Off | Quick Connect | Black | 10 A | O - |
